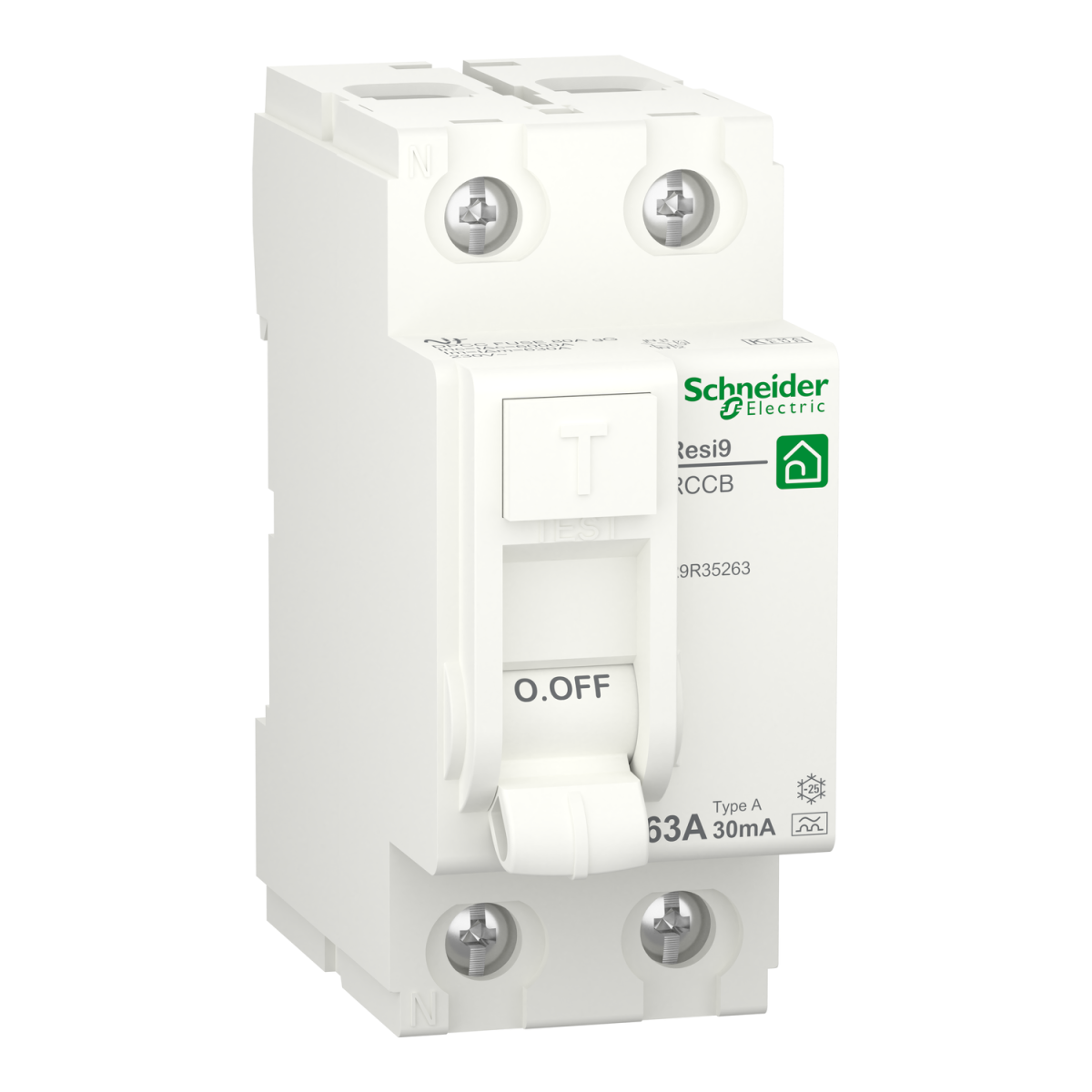

Resi9 - Interruptor Diferencial 2P 63A 30mA A
Cutting and Protection Devices
Resi9 - Interruptor Diferencial 2P 63A 30mA A
Nortécnica Ref:
51R9R35263
EAN:
3606481905116
Description
Technical Information
Attributes
Mounting method
DIN rail
Colour
White
Voltage type
AC
Built-in depth
44
Rated current
63
EF000228
230
Rated insulation voltage Ui
440
Number of poles
2
Rated fault current
0.03
Leakage current type
A
Selective protection
No
Short-circuit breaking capacity Icw
-
Surge current capacity
0.25
Pollution degree
2
Width in number of modular spacings
2
Short-time delayed tripping
No
RAL-number similar
9003
Explosion-proof
No
Power loss
5.6
Frequency
50/60 Hz
Degree of protection IP
IP20
Connectable conductor cross section solid-core
1
35
Connectable conductor cross section multi-wired
1
25
With interlocking device
No
Ambient temperature during operating
-25
60
Additional equipment possible
No
Device width
36
Device height
81
Device depth
73
Rated impulse withstand voltage Uimp
4
Type of personal protection PRCD
-
Brands
SCHNEIDER
