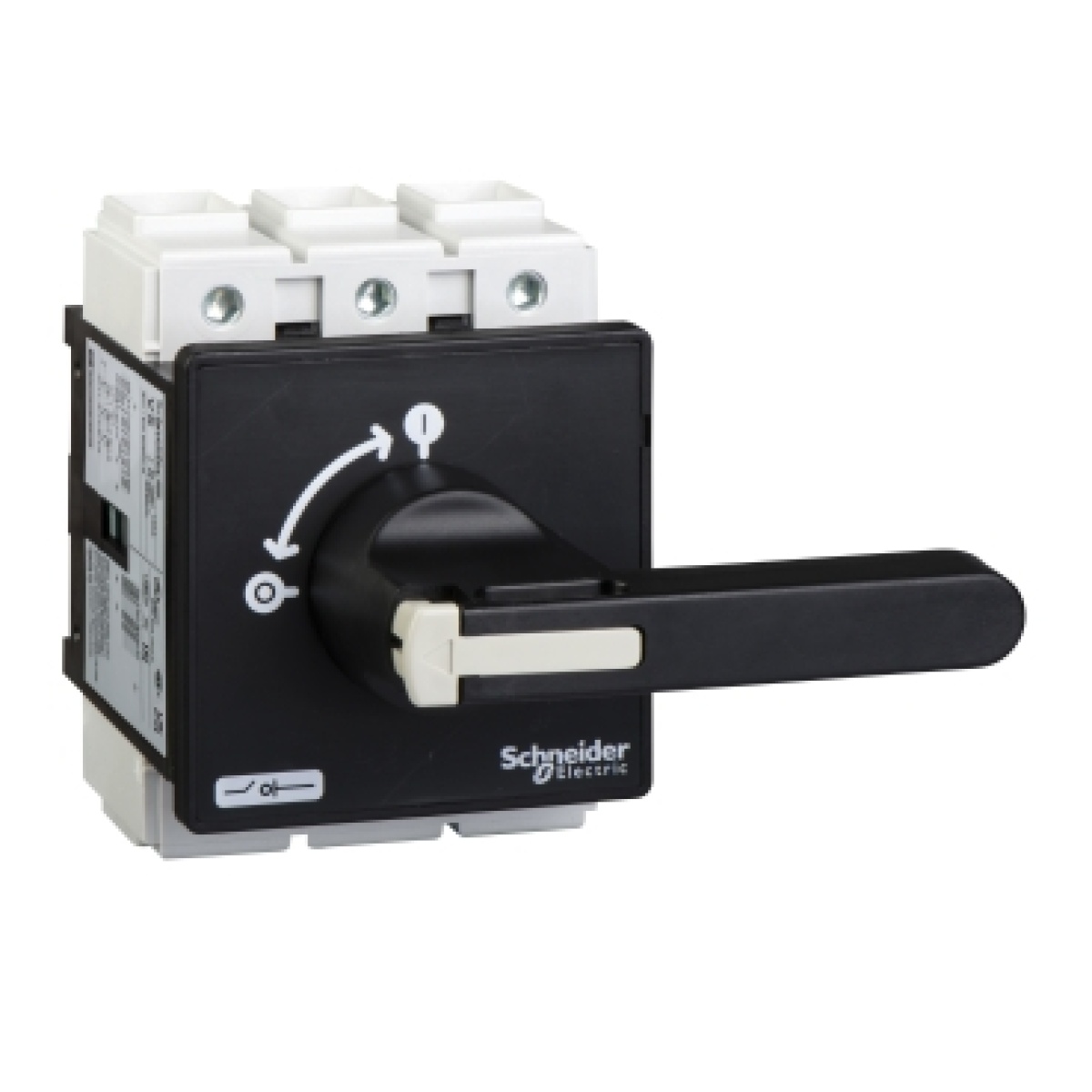

TeSys Vario - switch disconnector - 125 A - on door
Cutting and Protection Devices
TeSys Vario - switch disconnector - 125 A - on door
Nortécnica Ref:
EAN:
3389110804676
Description
Technical Information
Attributes
Largura
90
Altura
125
Profundidade
160
Rated operation power at AC-3, 400 V
30
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
125
Número de polos
3
Rated operating voltage
690
690
Conditioned rated short-circuit current Iq
10
Largura em número de módulos
-
Degree of protection IP, front side
IP65
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
No
Type of control element
Long rotary handle
Version as main switch
Yes
Version as safety switch
No
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
37
Rated short-time withstand current lcw
1.5
Colour control element
Black
EF007243
No
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
No
Suitable for intermediate mounting
No
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
125
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
68.5
Degree of protection NEMA
-
With pre-assembled cabling
No
Brands
SCHNEIDER
