Temporizadores de escada eletromecânicos MIN Largura de 18mm (2 módulos de 9 mm) Fecho e abertura de um contacto num determinado momento Atraso de tempo ajustável de 1 a 7 minutos Circuito de controlo com botões de pressão 230V luminosos ou padrão ligados Descompressão manual possível
Management and Measuring Devices

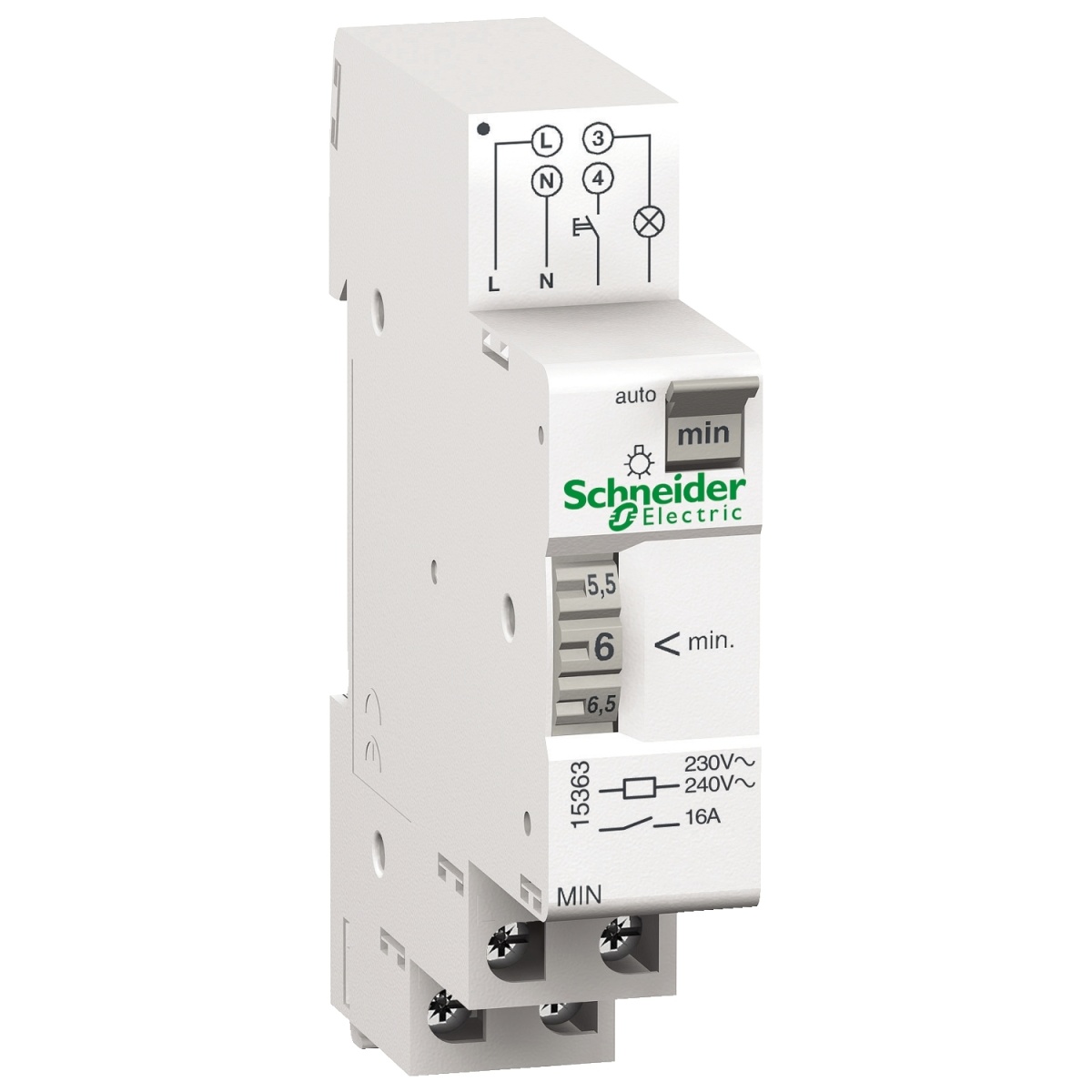

Acti 9 - MIN - electromechanical timer - adjustable from 1 to 7 minutes
Nortécnica Ref:
51015363
EAN:
3303430153634
Description
Technical Information
Attributes
Mounting method
DIN rail
Function
Other
Built-in depth
68
Power consumption
-
Release-delay
1
7
Width in number of modular spacings
1
Control voltage 1
230
230
Control voltage 2
-
-
Type of control voltage 1
AC
Type of control voltage 2
-
Frequency control voltage 1
50
50
Frequency control voltage 2
-
-
Wiring system
3 and 4 wire configuration
Pre-warning of switching-off
None
Repetitive
None
Voltage type supply voltage
AC
Supply voltage
230
230
Max. switching current cos phi 0.6
10
Max. incandescent lamp load
2300
Max. load fluorescent lamp
2300
Max. load fluorescent lamp Duo circuit
2300
Max. load fluorescent lamp parallel compensated
1300
Rated switch current
16
Push button glow-lamp current
50
Current surge function selectable
No
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Max. switching power LED
-
