Monitoring relay, can be mounted to Contactor 3RT2, Size S2 basic, analog adjustment Apparent current monitoring 8...80 A, 50...60 Hz, 2-phase Supply 24 V AC/DC 1 change-over contact Monitoring for Current overshoot and undershoot Phase failure, Cable break with or without fault buffer ON delay 0-60 s Noise pulse suppression 0-30 s Switching hysteresis 6% Screw connection system Monitoring relays SIRIUS 3RR2 for plugging into SIRIUS 3RT2 contactors or for stand-alone installation for multi-phase current monitoring of the entire plant or of the driven process. The reliable monitoring for cable break, phase failure / sequence, fault current, motor blocking etc. ensures increased plant availability. Actual value displays, status messages and clear error messages permit fast and reliable diagnostics. The connection to the control via IO-Link is also possible. You also save money, as only one device is needed to monitor a motor along the entire torque curve and no separate current converter is required either. Thanks to the direct attachment to the 3RT2 contactors there is no additional wiring expense in the main circuit. You also benefit from the wide-range power supplies for global use. Analogically adjustable, 2-phase versions and digitally adjustable, 3-phase versions (with or without IO-Link) are available, each in three sizes with different current measuring ranges, with two different supply voltages and two types of connection. Matching holders are available for the stand-alone installation of the 3RR2 monitoring relays. SIRIUS relays - one range for every application.
Industrial Relays

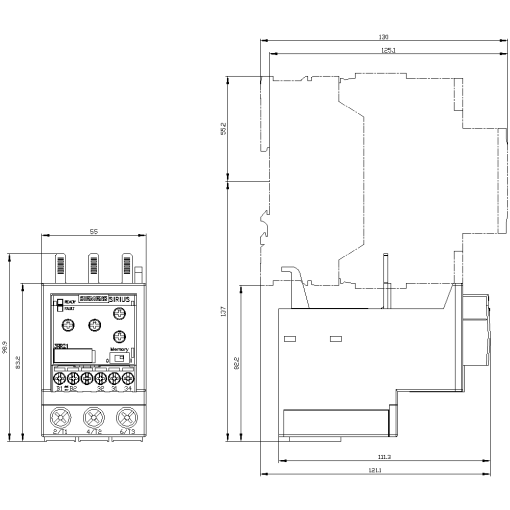

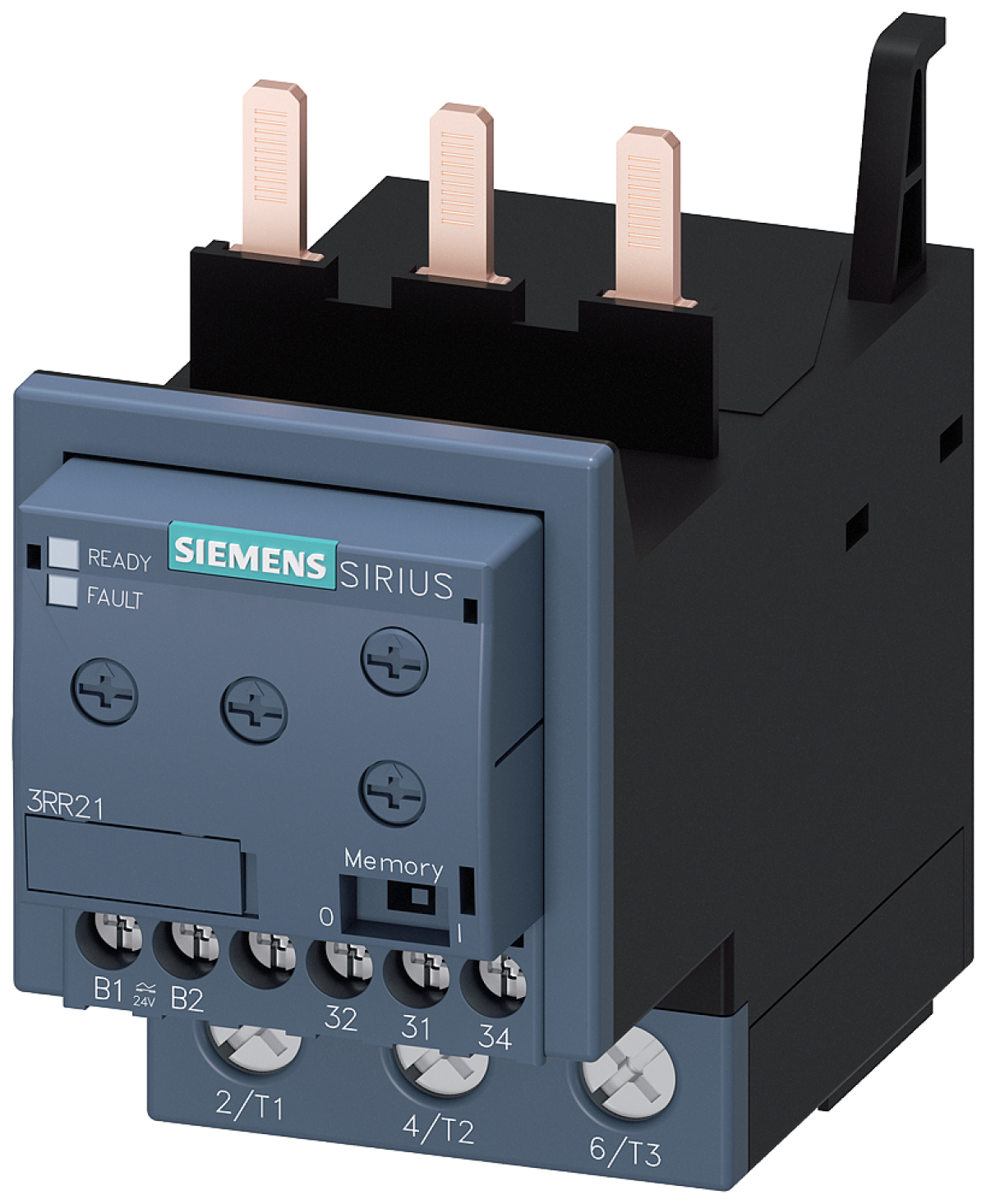

Monitoring relay 50-60 Hz, 2-phase supply 24 V ACDC 1 change-over contact
Nortécnica Ref:
EAN:
4011209936225
Description
Technical Information
Attributes
Width
55
Height
99
Depth
112
Current measuring range
8
External current transformer
No
With detachable clamps
-
Single-phase hysteresis possible
No
Three-phase hysteresis possible
No
Single-phase under current possible
No
Three-phase under current possible
No
Single-phase overcurrent possible
No
Three-phase overcurrent possible
No
Contains function DC-voltage under current
No
Contains function DC-voltage overcurrent
No
Function DC-current hysteresis
No
Type of electric connection
Screw connection
Rated control supply voltage AC 50 Hz
24
Rated control supply voltage AC 60 Hz
24
Rated control supply voltage DC
24
Max. permitted delay-on energization time
60
Min. adjustable delay-on energization time
0
Tempo de atraso da max. permitido
30
Tempo de atraso de min. ajustável
0
Voltage type for actuating
EV000509
Number of contacts as normally closed contact
-
Number of contacts as normally open contact
-
Number of contacts as change-over contact
-
Brands
SIEMENS
Descrição Longa
Monitoring relay, can be mounted to Contactor 3RT2, Size S2 basic, analog adjustment Apparent current monitoring 8...80 A, 50...60 Hz, 2-phase Supply 24 V AC/DC 1 change-over contact Monitoring for Current overshoot and undershoot Phase failure, Cable break with or without fault buffer ON delay 0-60 s Noise pulse suppression 0-30 s Switching hysteresis 6% Screw connection system Monitoring relays SIRIUS 3RR2 for plugging into SIRIUS 3RT2 contactors or for stand-alone installation for multi-phase current monitoring of the entire plant or of the driven process.
The reliable monitoring for cable break, phase failure / sequence, fault current, motor blocking etc. ensures increased plant availability. Actual value displays, status messages and clear error messages permit fast and reliable diagnostics. The connection to the control via IO-Link is also possible. You also save money, as only one device is needed to monitor a motor along the entire torque curve and no separate current converter is required either. Thanks to the direct attachment to the 3RT2 contactors there is no additional wiring expense in the main circuit. You also benefit from the wide-range power supplies for global use.
Analogically adjustable, 2-phase versions and digitally adjustable, 3-phase versions (with or without IO-Link) are available, each in three sizes with different current measuring ranges, with two different supply voltages and two types of connection.
Matching holders are available for the stand-alone installation of the 3RR2 monitoring relays.
SIRIUS relays - one range for every application.
