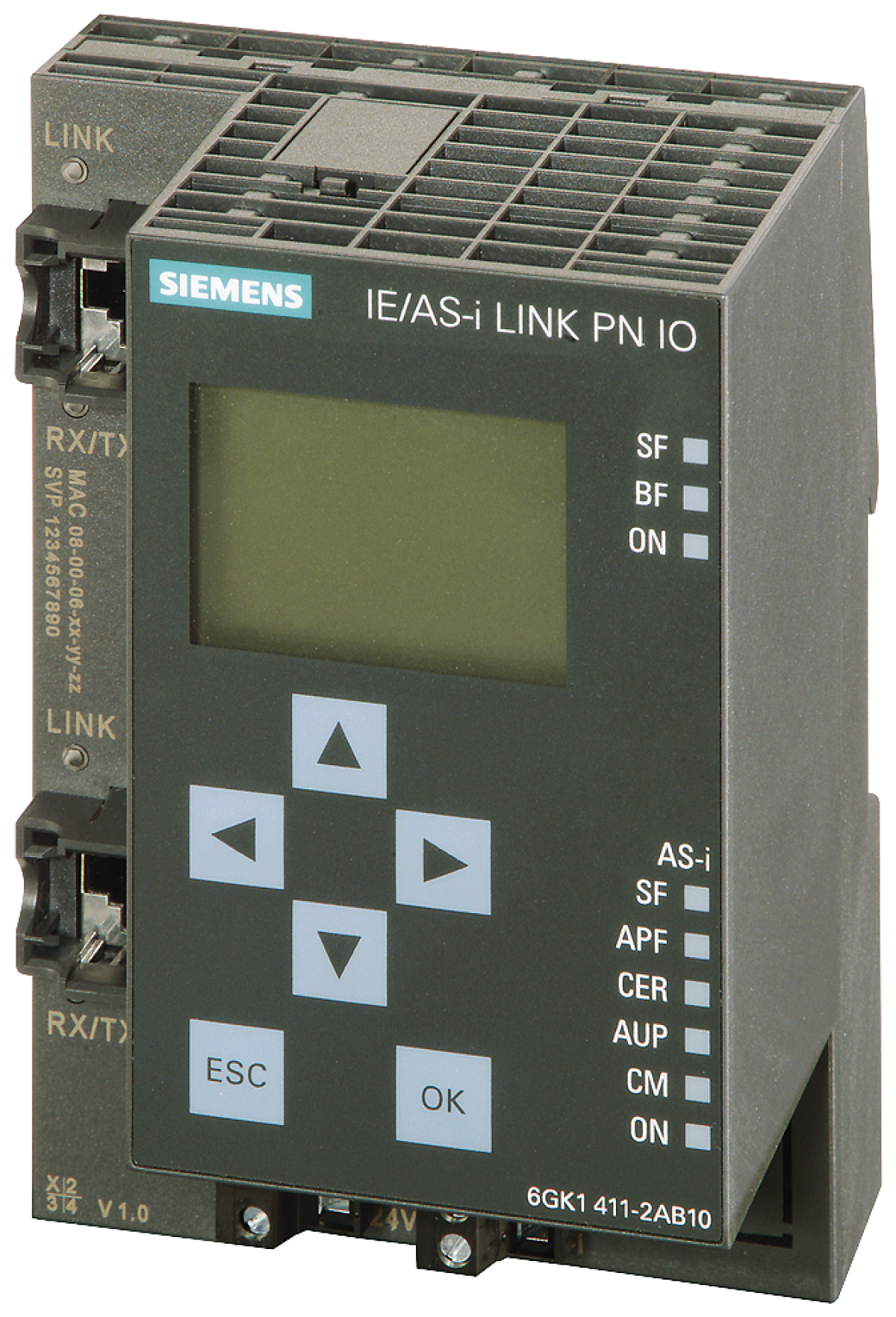

    IEAS-i Link PN IO, gateway PROFINETAS-i acc. to AS-i specification V3.0
    SIEMENS
    IEAS-i Link PN IO, gateway PROFINETAS-i acc. to AS-i specification V3.0
    IEAS-i Link PN IO, gateway PROFINETAS-i acc. to AS-i specification V3.0
    IEAS-i Link PN IO, gateway PROFINETAS-i acc. to AS-i specification V3.0
    123

    Programmable Logic Controllers and Dialogue Terminals

    IEAS-i Link PN IO, gateway PROFINETAS-i acc. to AS-i specification V3.0

    Nortécnica Ref:
    EAN: 4019169852173
    Login to see prices and stocks

    Description

    SIMATIC NET, IE/AS-i Link PN IO Gateway IE/AS-i with master profile M3, M4 according to AS-i specification V3.0 for integration in PROFINET IO Single master with display IP20

    Technical Information

    Attributes
    Largura
    90
    Altura
    132
    Profundidade
    88.5
    Suitable for safety functions
    No
    Supporting protocol for LON
    No
    Número de interfaces industriais HW Ethernet industrial
    2
    Número de interfaces HW RS-232
    0
    Número de interfaces HW RS-422
    0
    Número de interfaces HW RS-485
    0
    Número de interfaces HW de série TTY
    0
    Número de interfaces HW USB
    0
    Número de interfaces HW paralelas
    0
    Número de interfaces HW outras
    1
    With optical interface
    No
    Supporting protocol for TCPIP
    Yes
    Supporting protocol for ASI
    Yes
    Supporting protocol for PROFIBUS
    No
    Supporting protocol for CAN
    No
    Supporting protocol for INTERBUS
    No
    Supporting protocol for KNX
    No
    Supporting protocol for Modbus
    No
    Supporting protocol for Data-Highway
    No
    Supporting protocol for DeviceNet
    No
    Supporting protocol for SUCONET
    No
    Supporting protocol for other bus systems
    No
    Redundancy
    No
    Transmission rate
    -
    With potential separation
    Yes
    Explosion safety category for gas
    -
    Explosion safety category for dust
    None
    Appendant operation agent Ex ia
    No
    Appendant operation agent Ex ib
    No
    Supporting protocol for SERCOS
    No
    Supporting protocol for INTERBUS-Safety
    No
    Número de interfaces PROFINET
    2
    Número de interfaces HW sem fio
    0
    Radio standard Bluetooth
    No
    Radio standard WLAN 802.11
    No
    IO link master
    No
    Performance level according to EN ISO 138491
    None
    Supporting protocol for AS-Interface Safety at Work
    No
    Supporting protocol for DeviceNet Safety
    No
    Supporting protocol for EtherNetIP
    No
    Supporting protocol for Foundation Fieldbus
    No
    Supporting protocol for PROFINET CBA
    No
    Supporting protocol for PROFINET IO
    Yes
    Supporting protocol for PROFIsafe
    No
    Supporting protocol for SafetyBUS p
    No
    Type of data transmission
    -
    Mobile communication standard GPRS
    No
    Mobile communication standard 2G GSM
    No
    Mobile communication standard 3G UMTS
    No
    SIL according to IEC 61508
    None
    Brands
    SIEMENS
    Descrição Longa
    SIMATIC NET, IE/AS-i Link PN IO Gateway IE/AS-i with master profile M3, M4 according to AS-i specification V3.0 for integration in PROFINET IO Single master with display IP20
