LOGO! AM2 expansion module, PS/: 12/24 V DC, 2 AI, 0-10 V or 0/4-20 mA for LOGO! 8 The LOGO! expansion modules enable a LOGO! configuration to be expanded in a very individual way. A LOGO! 8 basic unit can be expanded to 24 digital inputs, 20 digital outputs, 8 analog inputs and 8 analog outputs. For this purpose, ten different expansion modules are available which allow expansion with digital and analog inputs and outputs using different input voltages.
Programmable Logic Controllers and Dialogue Terminals

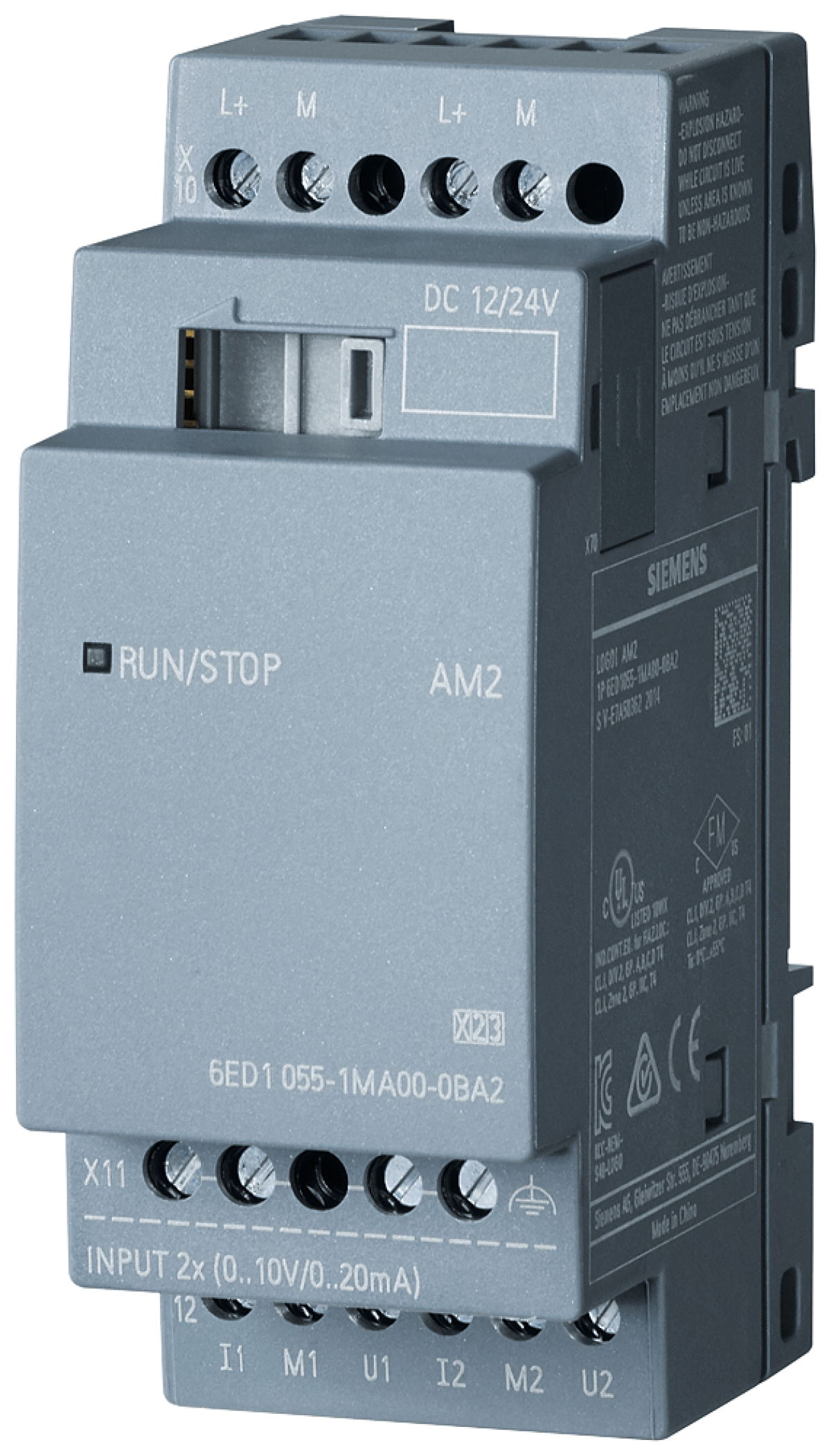

LOGO! AM2 For LOGO! 8
Nortécnica Ref:
EAN:
4034106029517
Description
Technical Information
Attributes
Width
35.5
Height
90
Depth
58
Suitable for safety functions
No
Number of analogue inputs
2
Number of analogue outputs
0
Input, current
Yes
Input, voltage
Yes
Input, resistor
No
Input, resistance thermometer
No
Input, thermocouple
No
Input signal, configurable
Yes
Output, current
-
Output, voltage
-
Output signal configurable
-
Resolution of the analogue inputs
10
Resolution of the analogue outputs
-
Type of electric connection
Screw-/spring clamp connection
Explosion safety category for gas
None
Explosion safety category for dust
None
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Performance level according to EN ISO 138491
-
Analogue inputs configurable
Yes
Analogue outputs configurable
-
SIL according to IEC 61508
-
Brands
SIEMENS
Descrição Longa
LOGO! AM2 expansion module, PS/: 12/24 V DC, 2 AI, 0-10 V or 0/4-20 mA for LOGO! 8 The LOGO! expansion modules enable a LOGO! configuration to be expanded in a very individual way. A LOGO! 8 basic unit can be expanded to 24 digital inputs, 20 digital outputs, 8 analog inputs and 8 analog outputs. For this purpose, ten different expansion modules are available which allow expansion with digital and analog inputs and outputs using different input voltages.
