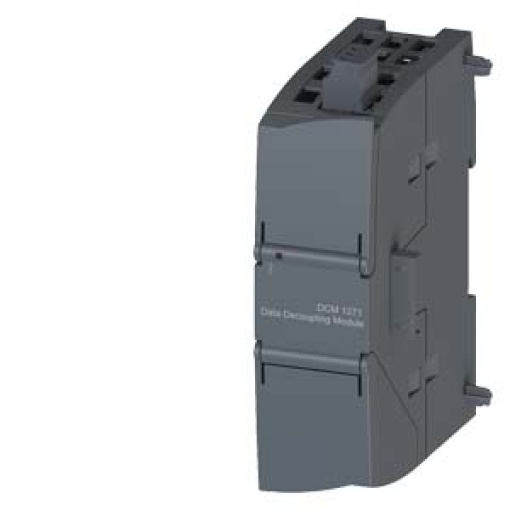

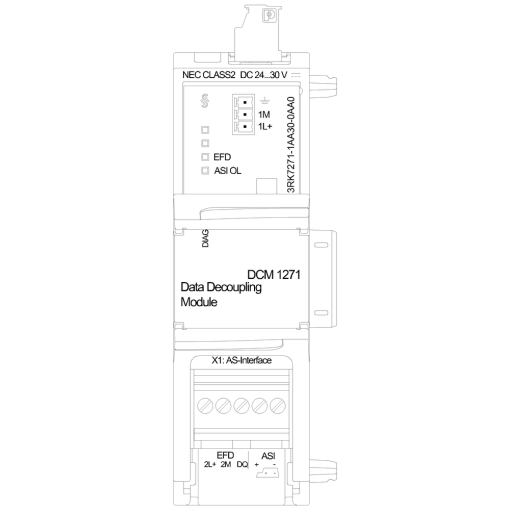

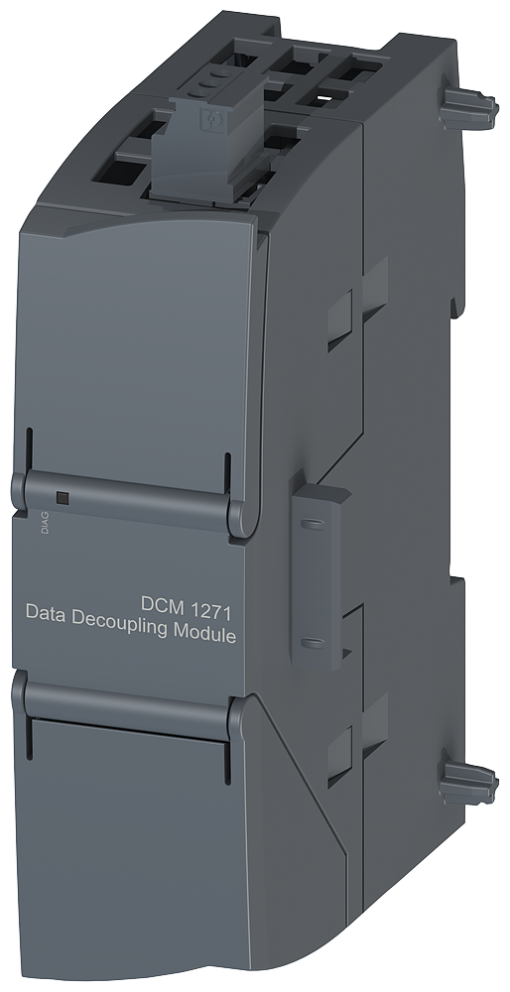

SIMATIC S7-1200, DCM 1271 Data decoupling module for AS-i Master CM 1243-2 IN: 24 V / 30 V DC OUT: 1x AS-Interface, 4 A Integrated overload protection integr. ground fault detection Signaling contact SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options In order to guarantee data transmission to the widest variety of systems a series of communication modules is offered for the SIMATIC S7-1200, ranging from the RS232 interface and AS-i to the PROFIBUS connection in the master or slave mode. This ensures an extensive range of possible applications for SIMATIC S7-1200.
Programmable Logic Controllers and Dialogue Terminals
S7-1200, DCM 1271, data decoupling unit for AS-i master CM 1243-2 in 24 V30...
Nortécnica Ref:
EAN:
4011209894365
Description
Technical Information
Attributes

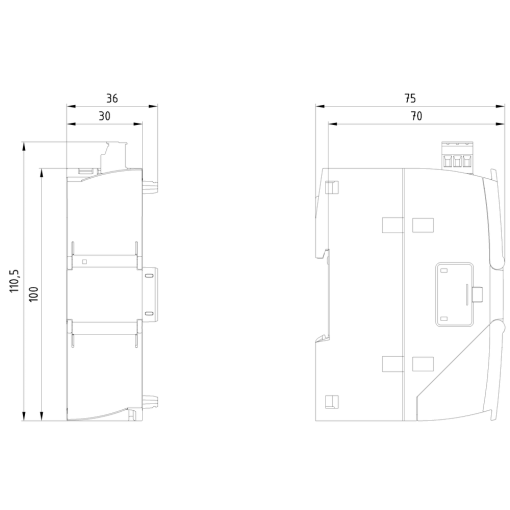

Width
30
Height
100
Depth
75
Suitable for safety functions
No
Type of voltage input voltage
DC
Redundancy
No
Output voltage AC 50 Hz
-
Output voltage AC 60 Hz
-
Output voltage DC
24
Input voltage AC 50 Hz
-
Input voltage AC 60 Hz
-
Input voltage DC
24
Max. output current AC 50 Hz
-
Max. output current AC 60 Hz
-
Max. output current DC
4
Max. input current AC 50 Hz
-
Max. input current AC 60 Hz
-
Max. input current DC
4.1
Type of output voltage
DC
Brands
SIEMENS
Long Description
SIMATIC S7-1200, DCM 1271 Data decoupling module for AS-i Master CM 1243-2 IN: 24 V / 30 V DC OUT: 1x AS-Interface, 4 A Integrated overload protection integr. ground fault detection Signaling contact SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options In order to guarantee data transmission to the widest variety of systems a series of communication modules is offered for the SIMATIC S7-1200, ranging from the RS232 interface and AS-i to the PROFIBUS connection in the master or slave mode. This ensures an extensive range of possible applications for SIMATIC S7-1200.
