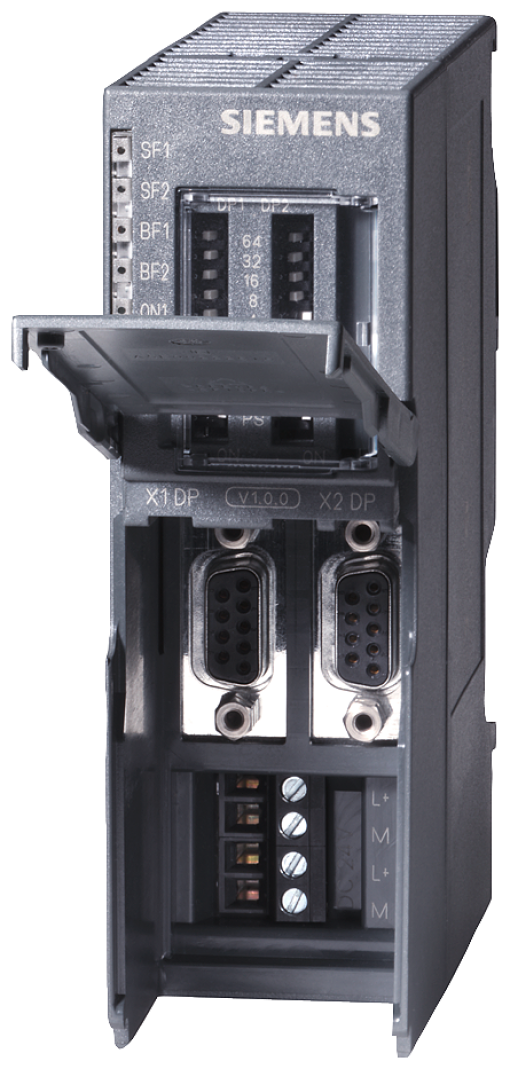

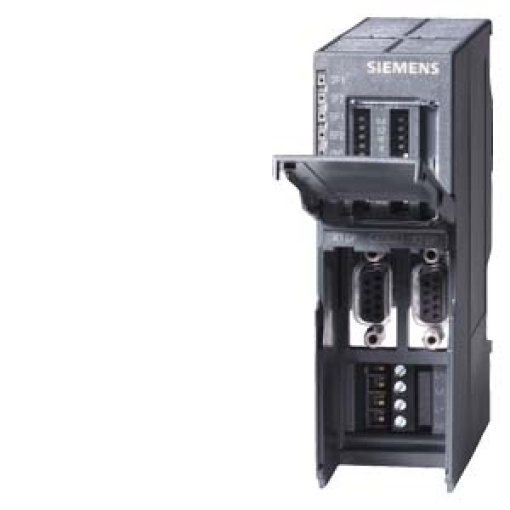

SIMATIC DP, DP/DP coupler Coupling module for connecting of two PROFIBUS DP networks redundant current infeed The DP/DP coupler allows two PROFBUS networks to communicate with one another extremely easily without the need for prior detailed checking of the PROFIBUS address field. It is therefore ideally suited to implement communication between two machines. In addition, availability is ensured via the redundant power feed.
Programmable Logic Controllers and Dialogue Terminals
SIMATIC DP DPDP coupler
Nortécnica Ref:
EAN:
4025515070726
Description
Technical Information
Attributes

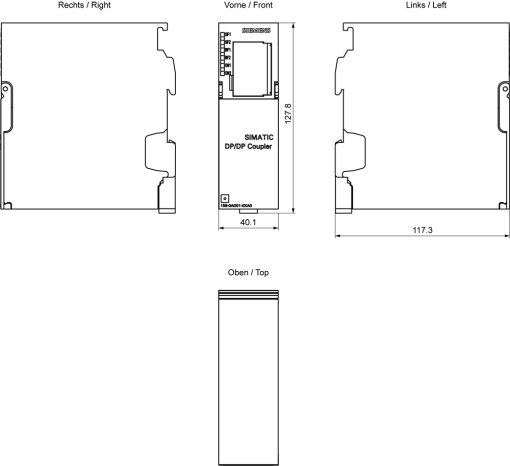

Width
40
Height
127
Depth
117
Suitable for safety functions
Yes
Voltage type supply voltage
DC
Supporting protocol for LON
No
Supporting protocol for TCPIP
-
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
Yes
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
Yes
With potential separation
Yes
Suitable for rail mounting
Yes
Explosion safety category for gas
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust
None
Fieldbus connection over separate bus coupler possible
No
System accessory
Yes
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Degree of protection IP
IP20
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Front built-in possible
No
Rack-assembly possible
No
Wall mountingdirect mounting
No
Radio standard Bluetooth
No
Radio standard WLAN 802.11
-
IO link master
No
Performance level according to EN ISO 13849-1
-
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Supply voltage AC 50 Hz
-
Supply voltage AC 60 Hz
-
Supply voltage DC
20.4
Mobile communication standard GPRS
No
Mobile communication standard 2G GSM
No
Mobile communication standard 3G UMTS
No
Radio standard eGPRS
-
Radio standard LTE
-
SIL according to IEC 61508
-
Brands
SIEMENS
Long Description
SIMATIC DP, DP/DP coupler Coupling module for connecting of two PROFIBUS DP networks redundant current infeed The DP/DP coupler allows two PROFBUS networks to communicate with one another extremely easily without the need for prior detailed checking of the PROFIBUS address field. It is therefore ideally suited to implement communication between two machines. In addition, availability is ensured via the redundant power feed.
