SIMATIC DP, PROFINET terminal block for ET 200ECO PN, 10 A SIMATIC ET 200eco is a compact block I/O with a PROFIBUS connection with IP65/67 degree of protection for cabinet-free installation directly at the machine. Due to its fully-sealed enclosure, the ET 200eco is mechanically very rugged and resistant to vibrations, dust, and humidity. Thanks to its ruggedness, it is particularly suitable for a wide range of applications in machine building and the automotive industry and, in particular, for tool changing machines. Accessories for SIMATIC ET 200eco PN
Programmable Logic Controllers and Dialogue Terminals

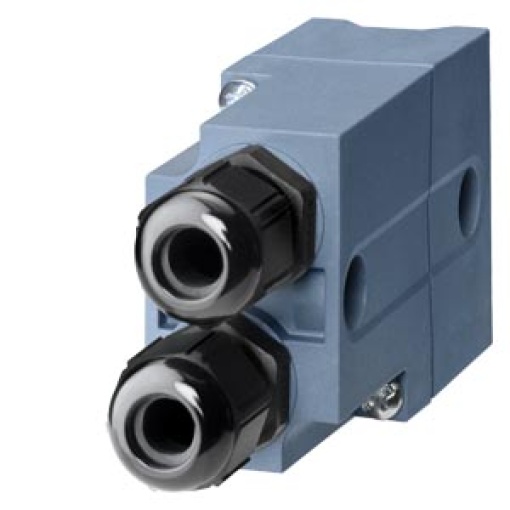

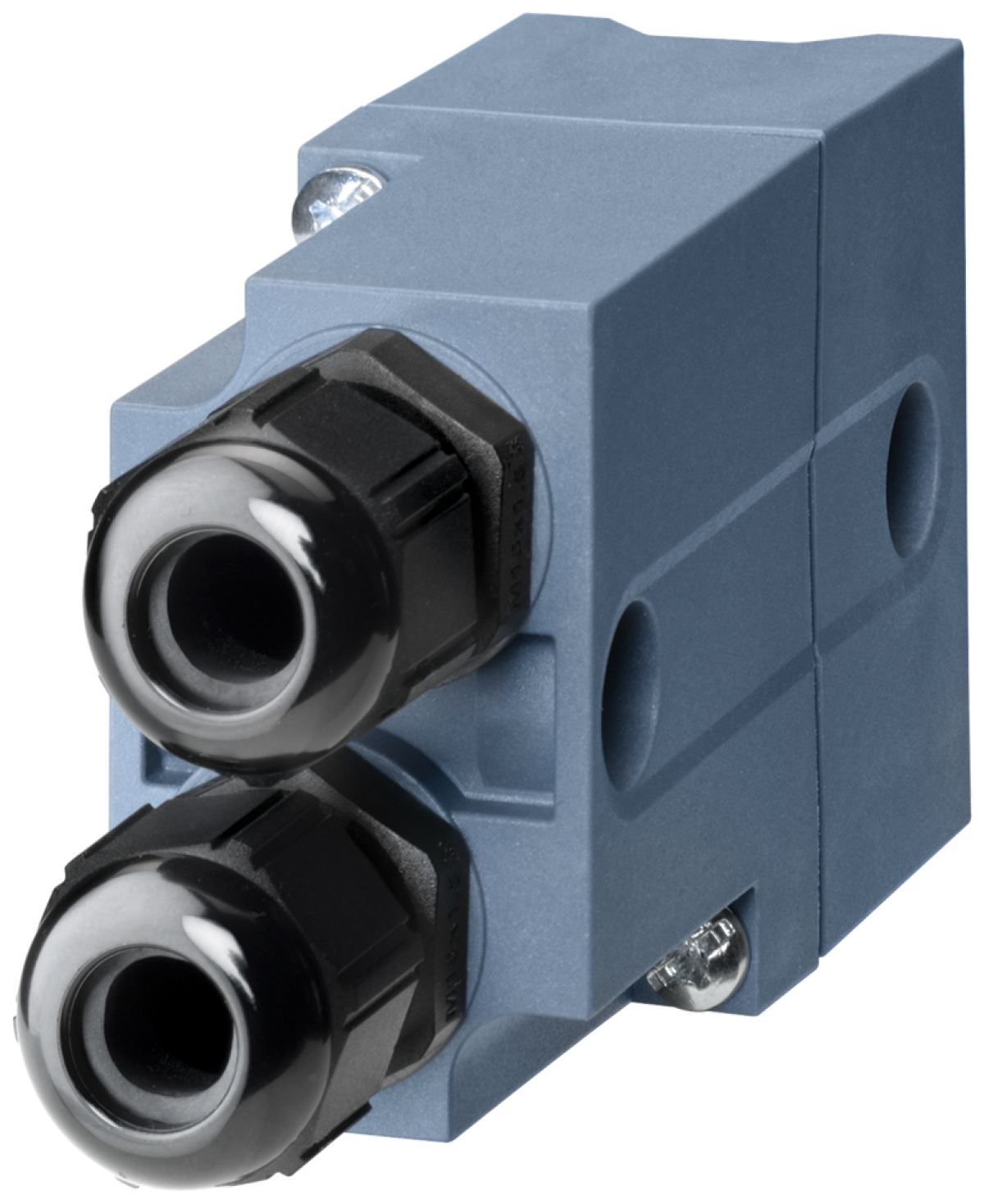

SIMATIC ET 200eco PN Terminal module
Nortécnica Ref:
EAN:
4025515077244
Description
Technical Information
Attributes
Largura
30
Altura
50
Profundidade
98
Suitable for safety functions
No
Type of voltage input voltage
DC
Number of slots
0
With pluggable modules, digital IO
Yes
With pluggable modules, analogue IO
Yes
With pluggable modules, communication modules
Yes
With pluggable modules, function and technology modules
Yes
With pluggable modules, central modules
No
With pluggable modules, others
Yes
With integrated power supply
No
Suitable for rail mounting
Yes
Explosion safety category for gas
None
Explosion safety category for dust
None
System accessory
Yes
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Output voltage AC 50 Hz
-
Output voltage AC 60 Hz
-
Output voltage DC
20.4
Front built-in possible
No
Rack-assembly possible
No
Wall mountingdirect mounting
Yes
Input voltage AC 50 Hz
-
Input voltage AC 60 Hz
-
Input voltage DC
20.4
Max. output current AC 50 Hz
-
Max. output current AC 60 Hz
-
Max. output current DC
10
Max. input current AC 50 Hz
-
Max. input current AC 60 Hz
-
Max. input current DC
10
Performance level according to EN ISO 138491
-
Type of output voltage
DC
SIL according to IEC 61508
-
Brands
SIEMENS
Descrição Longa
SIMATIC DP, PROFINET terminal block for ET 200ECO PN, 10 A SIMATIC ET 200eco is a compact block I/O with a PROFIBUS connection with IP65/67 degree of protection for cabinet-free installation directly at the machine. Due to its fully-sealed enclosure, the ET 200eco is mechanically very rugged and resistant to vibrations, dust, and humidity. Thanks to its ruggedness, it is particularly suitable for a wide range of applications in machine building and the automotive industry and, in particular, for tool changing machines. Accessories for SIMATIC ET 200eco PN
