**** Spare part *** Does not correspond to the current version of the standard. For use outside the EU SIMATIC Mobile Panel 277F IWLAN V2, with integrated acknowledgment button, emergency stop button, handwheel key-operated switch and two illuminated pushbuttons, supports IPCF (rapid roaming) configurable with WinCC flexible Standard Version 2008 SP 2 or higher incl. 1 main battery Power supply to be ordered separately: 6AV6671-5CE00-0AX1 charging station 6AV6671-5CN00-0AX2 tabletop power supply unit (EU/US/UK/JP) Mobile HMI. Process communication via WLAN.
Programmable Logic Controllers and Dialogue Terminals

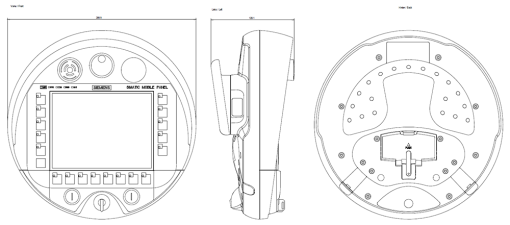

SIMATIC HMI Mobile Panel 277 IWLAN V2 With integrated acknowledgement button,...
Nortécnica Ref:
EAN:
4025515079224
Description
Technical Information
Attributes
Largura
-
Altura
290
Profundidade
103
Weight
2.2
Suitable for emergency stop
Yes
Suitable for safety functions
Yes
Screen diagonal
7.5
Operating temperature
0
Voltage type supply voltage
DC
Supporting protocol for LON
No
Número de interfaces industriais HW Ethernet industrial
1
Número de interfaces HW RS-232
0
Número de interfaces HW RS-422
0
Número de interfaces HW RS-485
0
Número de interfaces HW de série TTY
0
Número de interfaces HW USB
1
Número de interfaces HW paralelas
0
Número de interfaces HW outras
0
Supporting protocol for TCPIP
Yes
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
No
Colour display
Yes
Number of colours of the display
65536
Number of pixels, horizontal
640
Number of pixels, vertical
480
With touch screen
Yes
Number of function buttons, programmable
18
With alpha numeric keyboard
No
Usable project memoryuser memory
6000
With message indication
Yes
With message system incl. buffer and confirmation
Yes
Process value representation output possible
Yes
Process default value input possible
Yes
With recipes
Yes
Number of password levels
50
With printer output
No
Number of online languages
16
With enabling buttonemergency-stop switch
Yes
Pluggable connection
Yes
Max. fall height according to IEC 60068-2-32
1.2
Degree of protection IP
IP65
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Número de interfaces PROFINET
1
Número de interfaces HW sem fio
1
Radio standard Bluetooth
No
Radio standard WLAN 802.11
Yes
IO link master
No
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
-
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFIsafe
Yes
Supporting protocol for SafetyBUS p
No
Supply voltage AC 50 Hz
-
Supply voltage AC 60 Hz
-
Supply voltage DC
-
Type of display
TFT
Number of grey-scalesblue-scales of display
-
Mobile communication standard GPRS
No
Mobile communication standard 2G GSM
No
Mobile communication standard 3G UMTS
No
Number of buttons with LED
18
Number of system buttons
-
Degree of protection NEMA
-
Brands
SIEMENS
Descrição Longa
**** Spare part *** Does not correspond to the current version of the standard. For use outside the EU SIMATIC Mobile Panel 277F IWLAN V2, with integrated acknowledgment button, emergency stop button, handwheel key-operated switch and two illuminated pushbuttons, supports IPCF (rapid roaming) configurable with WinCC flexible Standard Version 2008 SP 2 or higher incl. 1 main battery Power supply to be ordered separately: 6AV6671-5CE00-0AX1 charging station 6AV6671-5CN00-0AX2 tabletop power supply unit (EU/US/UK/JP) Mobile HMI. Process communication via WLAN.
