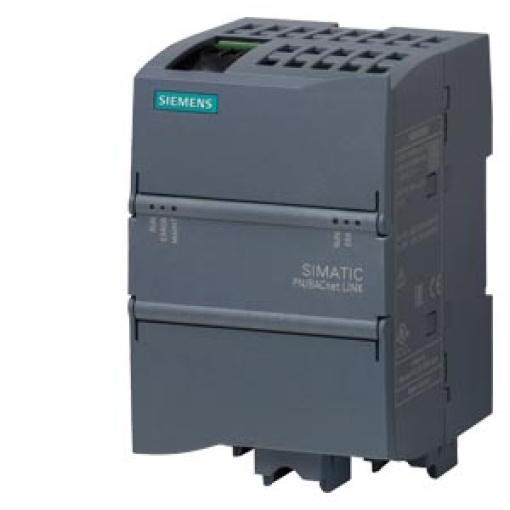

SIMATIC PN/BACnet LINK coupling module for Profinet to BACnet/IP Fieldbus, Device-Profile: B-GW, IP20 As a stand-alone component, the SIMATIC PN/BACnet Link forms a seamless transition between PROFINET and a BACnet/IP network. BACnet devices can thus be easily connected to a PROFINET network to communicate with SIMATIC components. This opens up a variety of options for easy implementation of modern production concepts, as well as for existing plants and machines.
Programmable Logic Controllers and Dialogue Terminals
SIMATIC NET PNBACnet Link
Nortécnica Ref:
EAN:
4025515739616
Description
Technical Information
Attributes

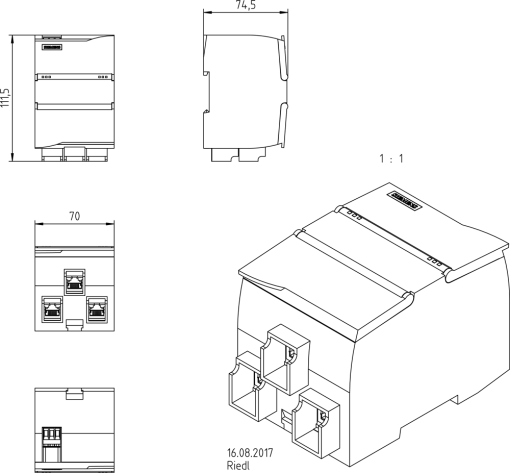

Width
70
Height
112
Depth
75
Suitable for safety functions
No
Supporting protocol for LON
No
Número de interfaces industriais HW Ethernet industrial
2
Número de interfaces HW RS-232
0
Número de interfaces HW RS-422
0
Número de interfaces HW RS-485
0
Número de interfaces HW de série TTY
0
Número de interfaces HW USB
0
Número de interfaces HW paralelas
0
Número de interfaces HW outras
1
With optical interface
No
Supporting protocol for TCPIP
-
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
Yes
Redundancy
No
Transmission rate
-
With potential separation
Yes
Explosion safety category for gas
-
Explosion safety category for dust
None
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Número de interfaces PROFINET
1
Número de interfaces HW sem fio
0
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Performance level according to EN ISO 138491
-
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
Yes
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Type of data transmission
Serial
Mobile communication standard GPRS
No
Mobile communication standard 2G GSM
No
Mobile communication standard 3G UMTS
No
SIL according to IEC 61508
-
Brands
SIEMENS
Descrição Longa
SIMATIC PN/BACnet LINK coupling module for Profinet to BACnet/IP Fieldbus, Device-Profile: B-GW, IP20 As a stand-alone component, the SIMATIC PN/BACnet Link forms a seamless transition between PROFINET and a BACnet/IP network. BACnet devices can thus be easily connected to a PROFINET network to communicate with SIMATIC components. This opens up a variety of options for easy implementation of modern production concepts, as well as for existing plants and machines.
