SIMATIC S7-1200, Analog input, SB 1231 TC, 1 AI thermocouples Type J or K SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options If you only have to extend your SIMATIC S7-1200 CPU with a few inputs or outputs, signal boards are a good alternative to signal modules. Signal boards are plugged directly onto the front of the controller (also possible with the CPU 1211C) and are available as digital and analog input, output and hybrid modules. A communications board with an RS 485 interface is also available. Signal boards thus permit subsequent expansion of the configuration without requiring any further space in the control cabinet.
Programmable Logic Controllers and Dialogue Terminals

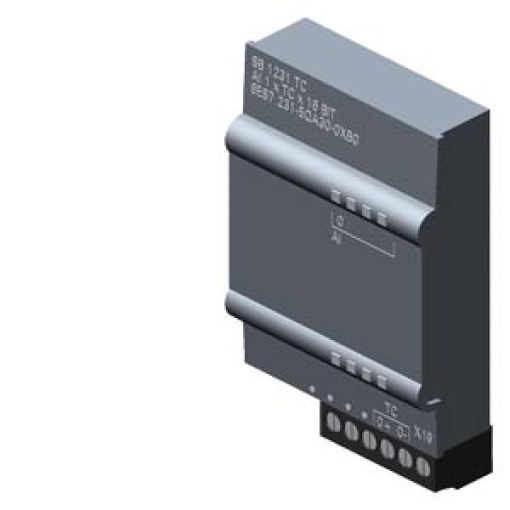

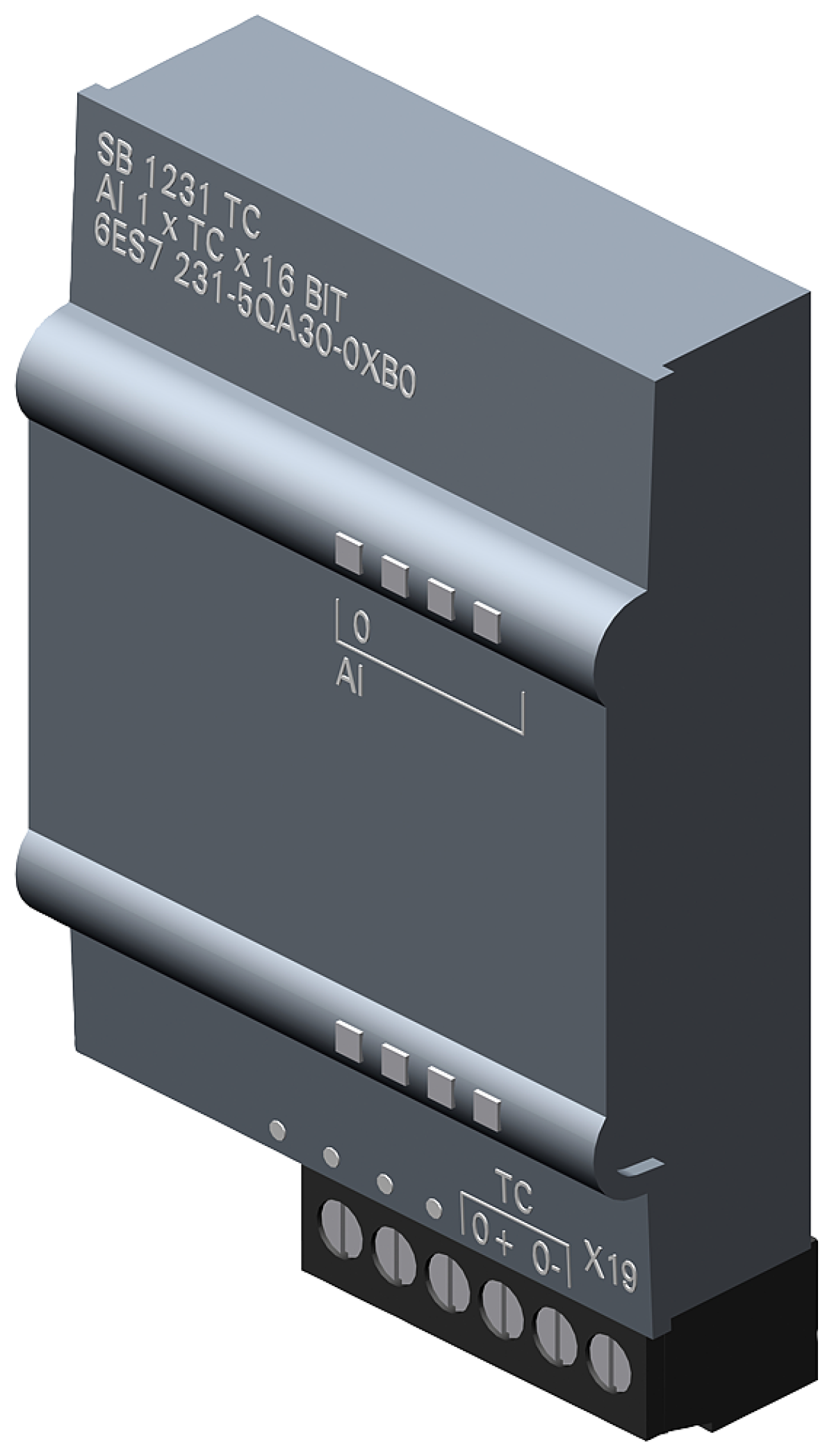

SIMATIC S7-1200 SB 1231, AI 1x16 bit TC
Nortécnica Ref:
EAN:
6940408100923
Description
Technical Information
Attributes

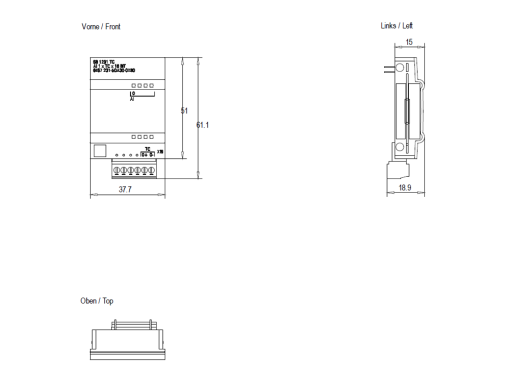

Width
38
Height
62
Depth
21
Suitable for safety functions
No
Number of analogue inputs
1
Number of analogue outputs
0
Input, current
No
Input, voltage
Yes
Input, resistor
No
Input, resistance thermometer
No
Input, thermocouple
Yes
Input signal, configurable
Yes
Output, current
No
Output, voltage
No
Output signal configurable
Yes
Resolution of the analogue inputs
15
Resolution of the analogue outputs
-
Type of electric connection
Screw-/spring clamp connection
Explosion safety category for gas
-
Explosion safety category for dust
None
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Performance level according to EN ISO 138491
-
Analogue inputs configurable
Yes
Analogue outputs configurable
Yes
SIL according to IEC 61508
-
Brands
SIEMENS
Long Description
SIMATIC S7-1200, Analog input, SB 1231 TC, 1 AI thermocouples Type J or K SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options If you only have to extend your SIMATIC S7-1200 CPU with a few inputs or outputs, signal boards are a good alternative to signal modules. Signal boards are plugged directly onto the front of the controller (also possible with the CPU 1211C) and are available as digital and analog input, output and hybrid modules. A communications board with an RS 485 interface is also available. Signal boards thus permit subsequent expansion of the configuration without requiring any further space in the control cabinet.
