SIMATIC S7-1500, CM PTP RS232 BA Communication module for Serial connection RS232, Freeport, 3964 (R), USS, 19200 Kbit/s, 9-pin D-sub connector SIMATIC ET 200MP is a modular and scalable I/O system with IP20 for universal use, and offers the same system advantages as the S7-1500. It permits the shortest bus cycle times and fastest response times, even with large volumes of data. The distributed I/O system is particularly easy to install, wire, and commission. Thanks to its scalable design, you can gear the IO station exactly to the on-site requirements. Communication modules expand the communication capabilities of the ET 200MP by providing additional interfaces.
Programmable Logic Controllers and Dialogue Terminals

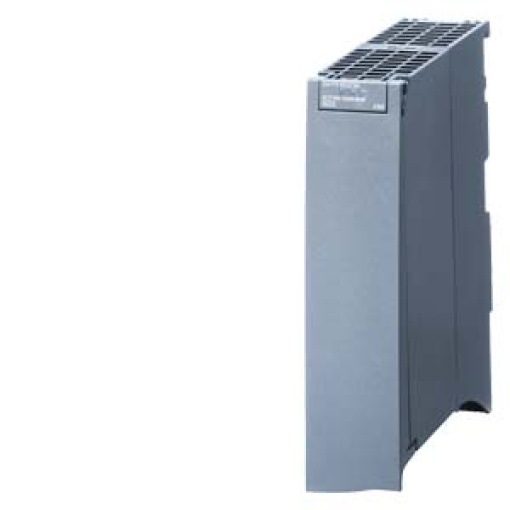

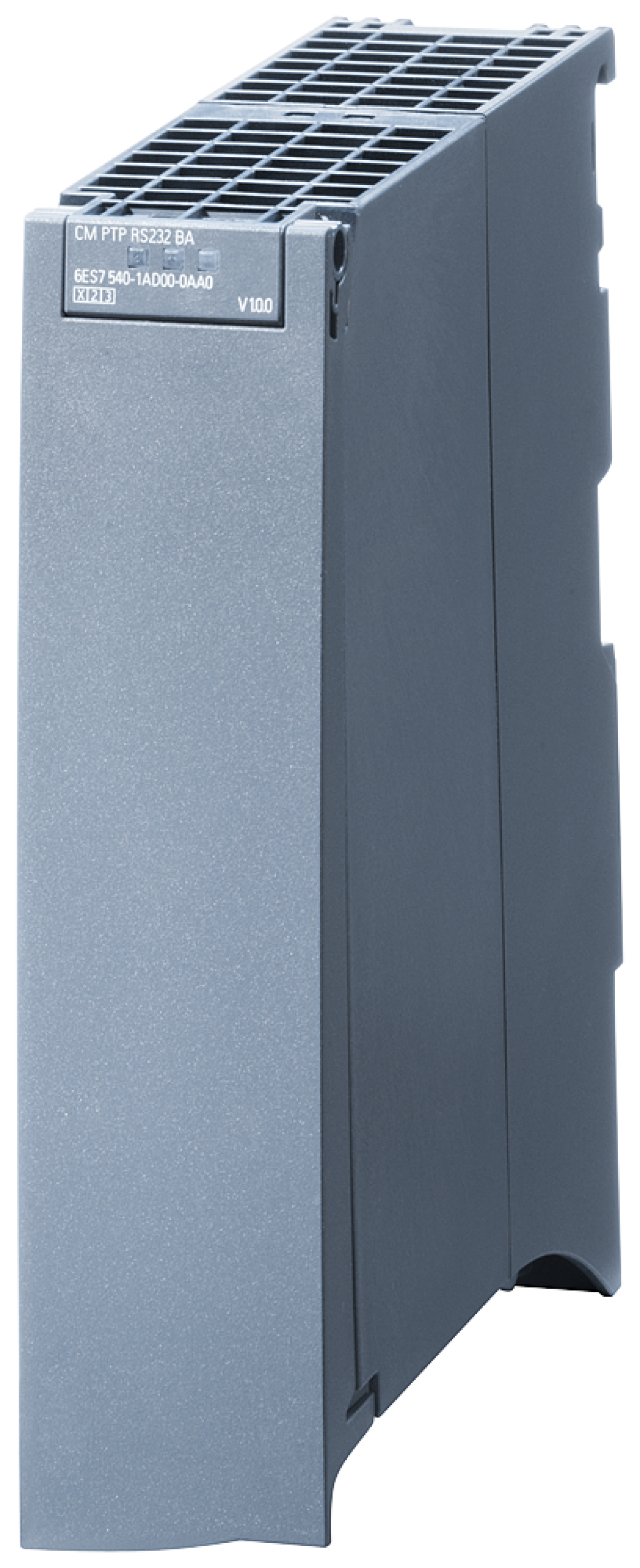

SIMATIC S7-1500 CM PtP RS 232 BA Freeport, 3964R, USS
Nortécnica Ref:
EAN:
4025515079903
Description
Technical Information
Attributes

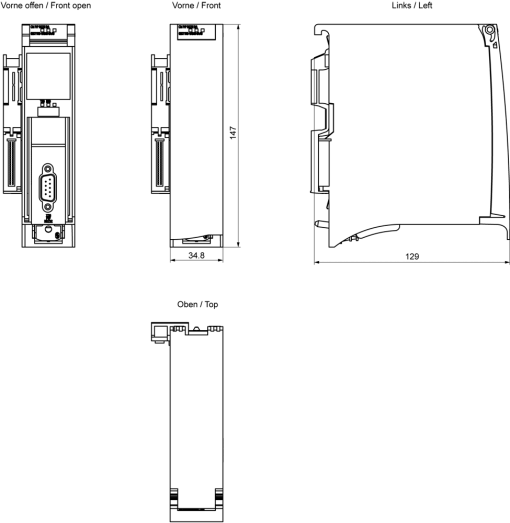

Width
35
Height
147
Depth
127
Suitable for safety functions
No
Supporting protocol for LON
No
Número de interfaces industriais HW Ethernet industrial
0
Número de interfaces HW RS-232
1
Número de interfaces HW RS-422
0
Número de interfaces HW RS-485
0
Número de interfaces HW de série TTY
0
Número de interfaces HW USB
0
Número de interfaces HW paralelas
0
Número de interfaces HW outras
0
With optical interface
No
Supporting protocol for TCPIP
-
Supporting protocol for ASI
No
Supporting protocol for PROFIBUS
No
Supporting protocol for CAN
No
Supporting protocol for INTERBUS
No
Supporting protocol for KNX
No
Supporting protocol for Modbus
No
Supporting protocol for Data-Highway
No
Supporting protocol for DeviceNet
No
Supporting protocol for SUCONET
No
Supporting protocol for other bus systems
Yes
Redundancy
No
Transmission rate
-
With potential separation
Yes
Explosion safety category for gas
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust
None
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Supporting protocol for SERCOS
No
Supporting protocol for INTERBUS-Safety
No
Número de interfaces PROFINET
0
Número de interfaces HW sem fio
0
Radio standard Bluetooth
No
Radio standard WLAN 802.11
No
IO link master
No
Performance level according to EN ISO 138491
-
Supporting protocol for AS-Interface Safety at Work
No
Supporting protocol for DeviceNet Safety
No
Supporting protocol for EtherNetIP
No
Supporting protocol for Foundation Fieldbus
No
Supporting protocol for PROFINET CBA
No
Supporting protocol for PROFINET IO
No
Supporting protocol for PROFIsafe
No
Supporting protocol for SafetyBUS p
No
Type of data transmission
Serial
Mobile communication standard GPRS
No
Mobile communication standard 2G GSM
No
Mobile communication standard 3G UMTS
No
SIL according to IEC 61508
-
Brands
SIEMENS
Long Description
SIMATIC S7-1500, CM PTP RS232 BA Communication module for Serial connection RS232, Freeport, 3964 (R), USS, 19200 Kbit/s, 9-pin D-sub connector SIMATIC ET 200MP is a modular and scalable I/O system with IP20 for universal use, and offers the same system advantages as the S7-1500. It permits the shortest bus cycle times and fastest response times, even with large volumes of data. The distributed I/O system is particularly easy to install, wire, and commission. Thanks to its scalable design, you can gear the IO station exactly to the on-site requirements. Communication modules expand the communication capabilities of the ET 200MP by providing additional interfaces.
