SIPLUS S7-1200 SM 1231 RTD 8AI based on 6ES7231-5PF32-0XB0 with conformal coating, -20…+60 °C, analog input, SM 1231 RTD, 8xAI RTD module SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options With signal modules you can adapt the configuration of your SIMATIC S7-1200 (except for CPU 1211C) individually to meet your requirements. For this purpose, a series of digital and analog input, output and hybrid modules is available, including fail-safe versions. Thanks to this detailed expansion option you can save space in the control cabinet and get the most from your hardware expenditure. Just like the CPU, theanalog input modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your analog signals are reliably recorded.
Programmable Logic Controllers and Dialogue Terminals

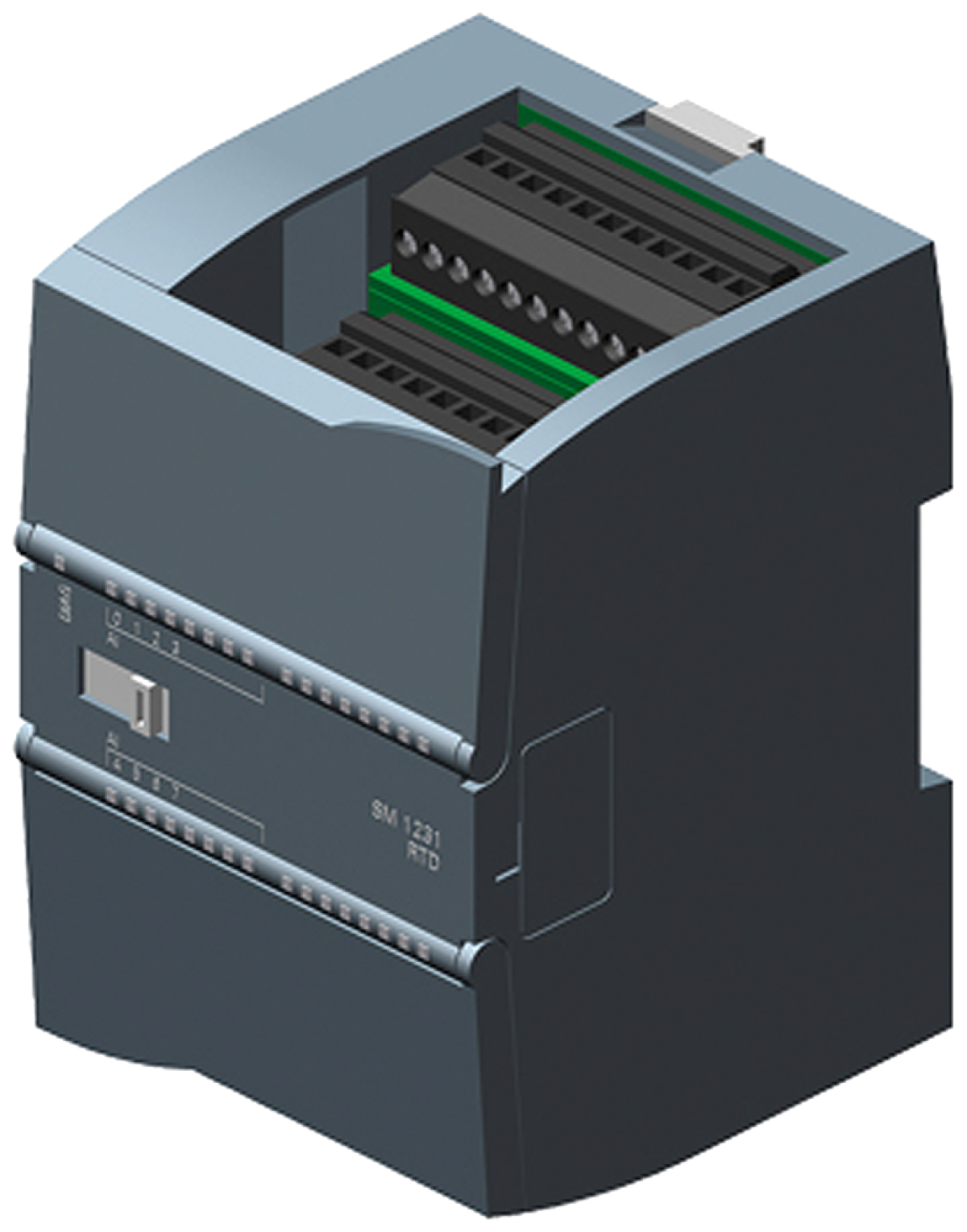

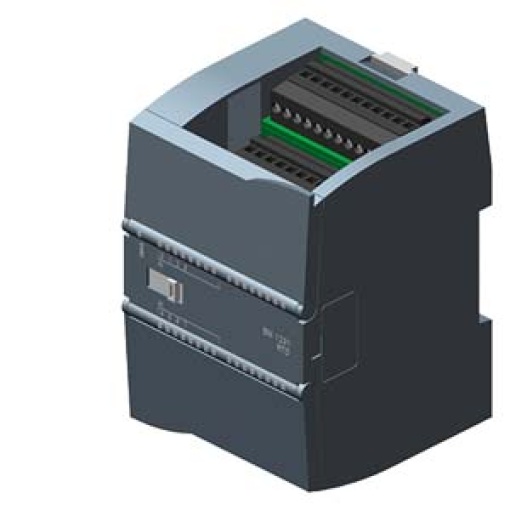

SIPLUS S7-1200 SM 1231, AI 8x16 bit RTD With conformal coating based on 6ES72...
Nortécnica Ref:
EAN:
4047618053437
Description
Technical Information
Attributes
Largura
70
Altura
100
Profundidade
75
Suitable for safety functions
No
Número de entradas analógicas
8
Número de saídas analógicas
0
Input, current
No
Input, voltage
No
Input, resistor
Yes
Input, resistance thermometer
Yes
Input, thermocouple
No
Input signal, configurable
Yes
Output, current
-
Output, voltage
-
Output signal configurable
-
Resolution of the analogue inputs
15
Resolution of the analogue outputs
-
Type of electric connection
Screw-/spring clamp connection
Explosion safety category for gas
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust
None
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Performance level according to EN ISO 138491
None
Analogue inputs configurable
Yes
Analogue outputs configurable
-
SIL according to IEC 61508
None
Brands
SIEMENS
Descrição Longa
SIPLUS S7-1200 SM 1231 RTD 8AI based on 6ES7231-5PF32-0XB0 with conformal coating, -20…+60 °C, analog input, SM 1231 RTD, 8xAI RTD module SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options With signal modules you can adapt the configuration of your SIMATIC S7-1200 (except for CPU 1211C) individually to meet your requirements. For this purpose, a series of digital and analog input, output and hybrid modules is available, including fail-safe versions. Thanks to this detailed expansion option you can save space in the control cabinet and get the most from your hardware expenditure. Just like the CPU, theanalog input modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your analog signals are reliably recorded.
