SIPLUS S7-1200 SM 1232 2AQ based on 6ES7232-4HB32-0XB0 with conformal coating, -20…+60 °C, analog output +/-10 V: 14-bit resolution or 0-20 mA: 13-bit resolution SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options With signal modules you can adapt the configuration of your SIMATIC S7-1200 (except for CPU 1211C) individually to meet your requirements. For this purpose, a series of digital and analog input, output and hybrid modules is available, including fail-safe versions. Thanks to this detailed expansion option you can save space in the control cabinet and get the most from your hardware expenditure. Just like the CPU, theanalog output modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your analog signals are reliably output.
Programmable Logic Controllers and Dialogue Terminals

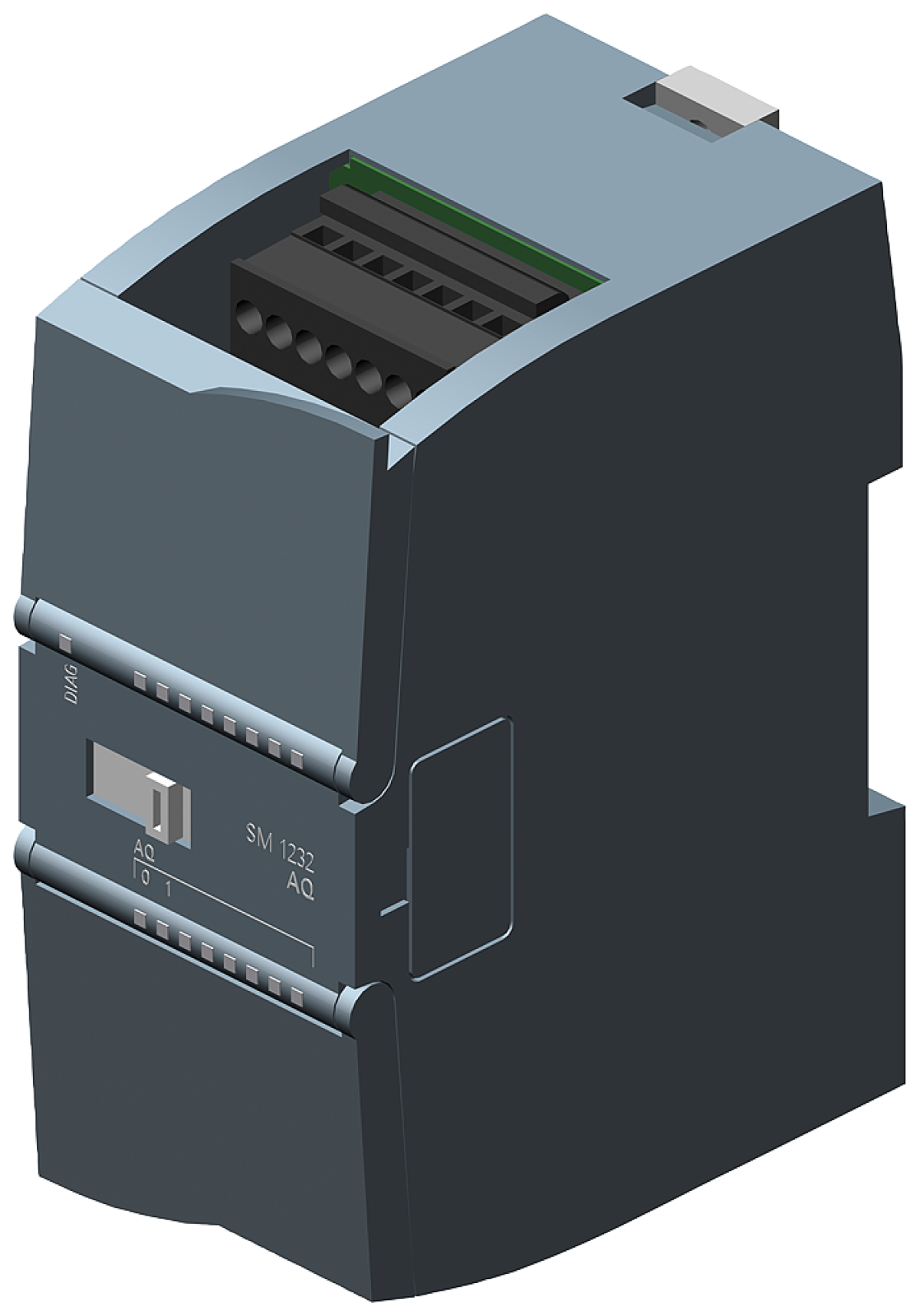

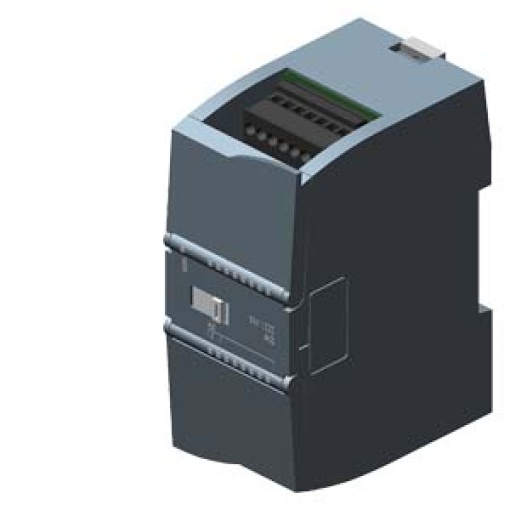

SIPLUS S7-1200 SM 1232, AQ 2x14 bit With conformal coating based on 6ES7232-4...
Nortécnica Ref:
EAN:
4047618046323
Description
Technical Information
Attributes
Largura
45
Altura
100
Profundidade
75
Suitable for safety functions
No
Número de entradas analógicas
0
Número de saídas analógicas
2
Input, current
-
Input, voltage
-
Input, resistor
-
Input, resistance thermometer
-
Input, thermocouple
-
Input signal, configurable
-
Output, current
Yes
Output, voltage
Yes
Output signal configurable
Yes
Resolution of the analogue inputs
-
Resolution of the analogue outputs
14
Type of electric connection
Screw-/spring clamp connection
Explosion safety category for gas
-
Explosion safety category for dust
None
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Performance level according to EN ISO 138491
-
Analogue inputs configurable
-
Analogue outputs configurable
Yes
SIL according to IEC 61508
-
Brands
SIEMENS
Descrição Longa
SIPLUS S7-1200 SM 1232 2AQ based on 6ES7232-4HB32-0XB0 with conformal coating, -20…+60 °C, analog output +/-10 V: 14-bit resolution or 0-20 mA: 13-bit resolution SIMATIC S7-1200 Basic Controller - Flexible thanks to wide variety of communication options With signal modules you can adapt the configuration of your SIMATIC S7-1200 (except for CPU 1211C) individually to meet your requirements. For this purpose, a series of digital and analog input, output and hybrid modules is available, including fail-safe versions. Thanks to this detailed expansion option you can save space in the control cabinet and get the most from your hardware expenditure. Just like the CPU, theanalog output modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your analog signals are reliably output.
