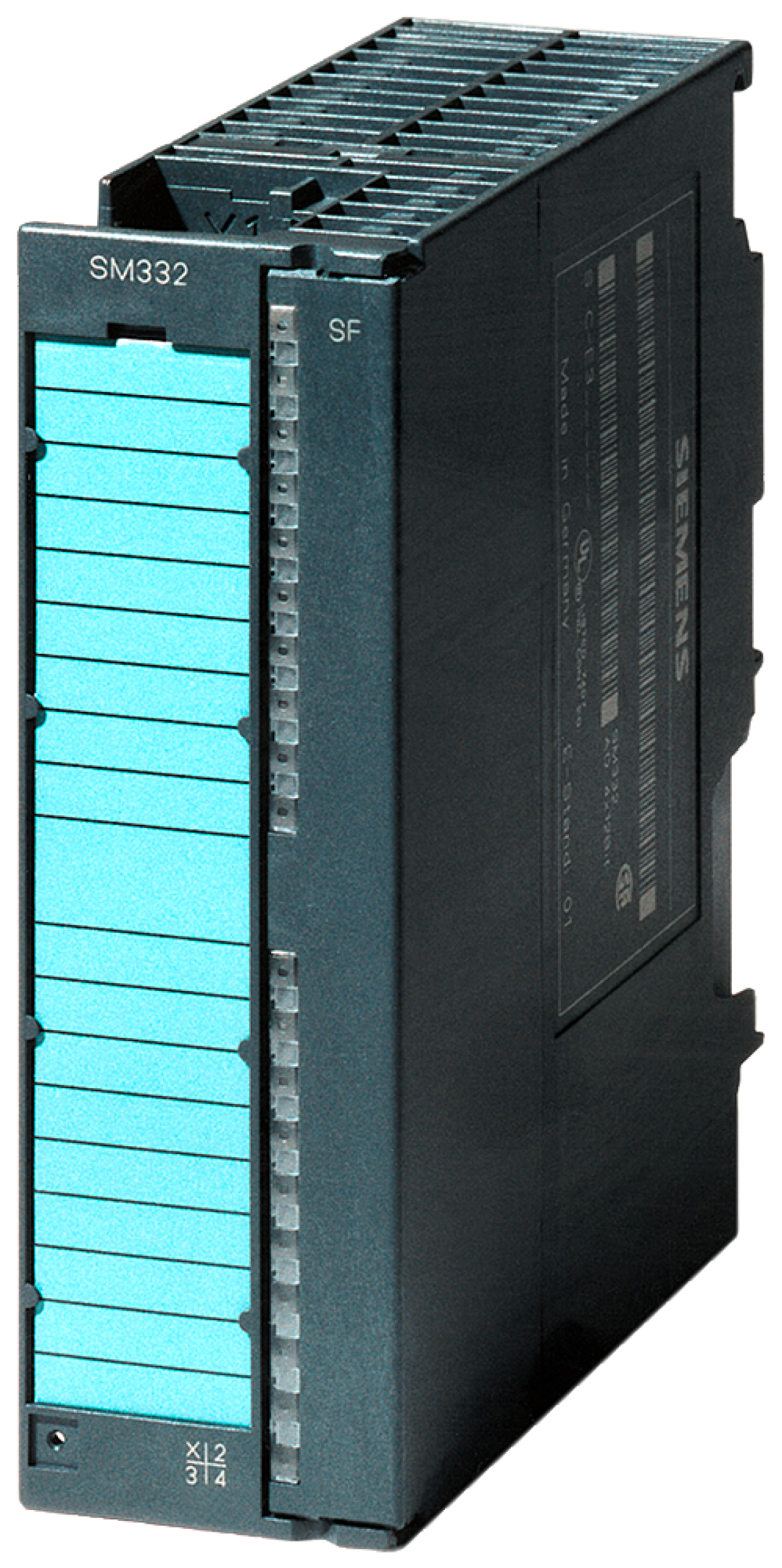

SIPLUS S7-300 SM 332 4AQ based on 6ES7332-7ND02-0AB0 with conformal coating, 0…+60 °C, analog output isolated by channel, 4 AQ, resolution 16 bit, 0-10 V, 1-5 V, +/-10 V, +/-20 mA, 0/4-20 mA, 20-pole, suitable for isochronous-mode operation improved bus cycle times for the isochronous mode Just like the CPU, the analog output modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your analog signals are reliably output.
Programmable Logic Controllers and Dialogue Terminals
SIPLUS S7-300 SM 332, AQ 4x16 bit Isochronous With conformal coating based on...
Nortécnica Ref:
EAN:
4042948489437
Description
Technical Information
Attributes
Width
40
Height
125
Depth
120
Suitable for safety functions
No
Number of analogue inputs
0
Number of analogue outputs
4
Input, current
-
Input, voltage
-
Input, resistor
-
Input, resistance thermometer
-
Input, thermocouple
-
Input signal, configurable
-
Output, current
Yes
Output, voltage
Yes
Output signal configurable
Yes
Resolution of the analogue inputs
-
Resolution of the analogue outputs
16
Type of electric connection
Screw-/spring clamp connection
Explosion safety category for gas
ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust
None
Appendant operation agent Ex ia
No
Appendant operation agent Ex ib
No
Performance level according to EN ISO 13849-1
-
Analogue inputs configurable
-
Analogue outputs configurable
Yes
SIL according to IEC 61508
-
Brands
SIEMENS
Long Description
SIPLUS S7-300 SM 332 4AQ based on 6ES7332-7ND02-0AB0 with conformal coating, 0…+60 °C, analog output isolated by channel, 4 AQ, resolution 16 bit, 0-10 V, 1-5 V, +/-10 V, +/-20 mA, 0/4-20 mA, 20-pole, suitable for isochronous-mode operation improved bus cycle times for the isochronous mode Just like the CPU, the analog output modules are also protected against extreme ambient conditions. Due to the 100% conformal coating they can withstand biologically, chemically and physically active substances, condensation, frost, and corrosive gases. Regardless of the conditions, your analog signals are reliably output.
