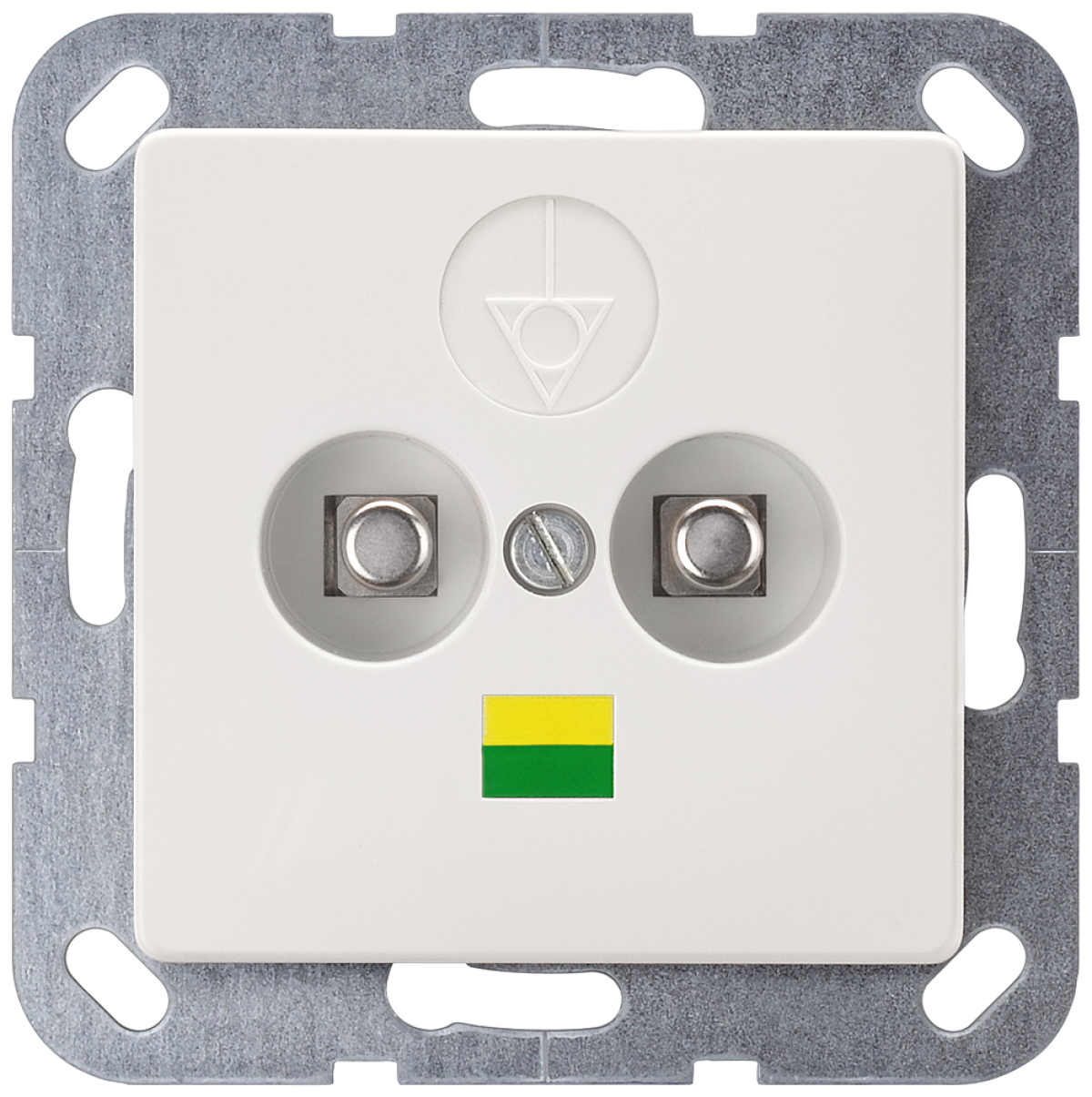

DELTA i-system double equipotential bonding socket, titanium white
SIEMENS

Miscellaneous

DELTA i-system double equipotential bonding socket, titanium white

Nortécnica Ref:
EAN: 4001869045061

Description

DELTA i-system titanium white Double equipotential bonding socket 55x 55 mm, DIN 42801 cable connection 1x 6 mm2 and 4x 2.5 mm2 DELTA switches and socket outlets – design and quality to perfection from Siemens. Due to its eternally stylish shapes and a multitude of colors, our comprehensive range of products gives you a plethora of individual design options, which expertly emphasize the aesthetics of any room. With our high level of manufacturing competence, we can also guarantee the high-value and long service life of our DELTA switches and sockets - from individual parts to the finished product. The Siemens design parts, such as rockers and frames, are characterized primarily by: 1. Multifaceted design surfaces made of high-value materials such as glass, wood, metal and plastic. 2. Current colors for your interior design. 3. 3 mm of plaster compensation ensures reliable functioning, even in extreme wall conditions. 4. Multifaceted designs such as rockers with illumination or labeling field. 5. Further surfaces for multimedia and communication. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.

Technical Information

Attributes
Mounting method
Flush-mounted
Assembly arrangement
Central cover plate
Colour
-
Halogen free
Yes
With hinged lid
No
Utilization
Potential equalization socket
Surface protection
Other
Outlet direction
Bottom
With strain relief
No
Material quality
Thermoplastic
Imprintable label
-
Suitable for number of connectors
1
Material
Plastic
Type of fastening
Mounting with screw
Shielded buses
-
Shielded housing
-
With lighting
No
Luster terminal
No
RAL-number similar
9010
With dust cover
No
With imprint
No
Impact strength
-
With busescouplings
-
Support ring
-
Transparent
No
Surface finishing
Glossy
Suitable for degree of protection IP
IP20

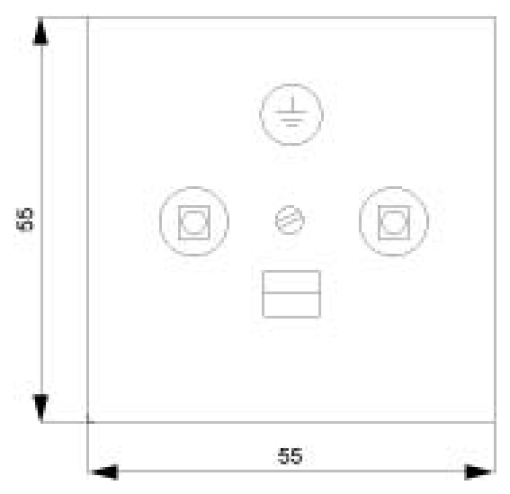

Device width
55
Device height
55
Device depth
-
Number of modules module system
-
Min. depth of built-in installation box
-
Anti-bacterial treatment
No
Brands
SIEMENS
Long Description
DELTA i-system titanium white Double equipotential bonding socket 55x 55 mm, DIN 42801 cable connection 1x 6 mm2 and 4x 2.5 mm2 DELTA switches and socket outlets – design and quality to perfection from Siemens. Due to its eternally stylish shapes and a multitude of colors, our comprehensive range of products gives you a plethora of individual design options, which expertly emphasize the aesthetics of any room. With our high level of manufacturing competence, we can also guarantee the high-value and long service life of our DELTA switches and sockets - from individual parts to the finished product. The Siemens design parts, such as rockers and frames, are characterized primarily by: 1. Multifaceted design surfaces made of high-value materials such as glass, wood, metal and plastic. 2. Current colors for your interior design. 3. 3 mm of plaster compensation ensures reliable functioning, even in extreme wall conditions. 4. Multifaceted designs such as rockers with illumination or labeling field. 5. Further surfaces for multimedia and communication. Siemens offers a comprehensive portfolio of protection, switching, measuring and monitoring devices, distribution systems as well as switches and sockets for safe and efficient electrical infrastructure in buildings and industry.
