DELTA flaeche IP44, AP Dark gray/light gray button, 10A 250V, 1 change-over contact can be used as NC contact 66x 75 mm DELTA switches and socket outlets – design and quality to perfection from Siemens. Our Delta flaeche IP 44 surface-mounting range provides you with an attractive design, enhanced safety and easy operation. So that the electrical installation does not get "wet feet". The Siemens surface-mounting program Delta flaeche IP 44 offers the following advantages: 1. Durable, high-impact thermoplastic enclosure. 2. Screwless terminals for switch and socket outlet inserts. 3. Insulated reset levers ensure touch protection. 4. Easy conductor releases at a press of a button, no tools required. 5. All terminals are designed as double terminals.
Switches, Dimmers, and Buttons

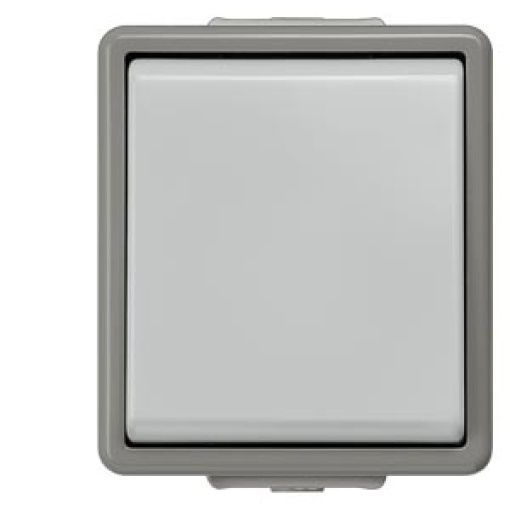

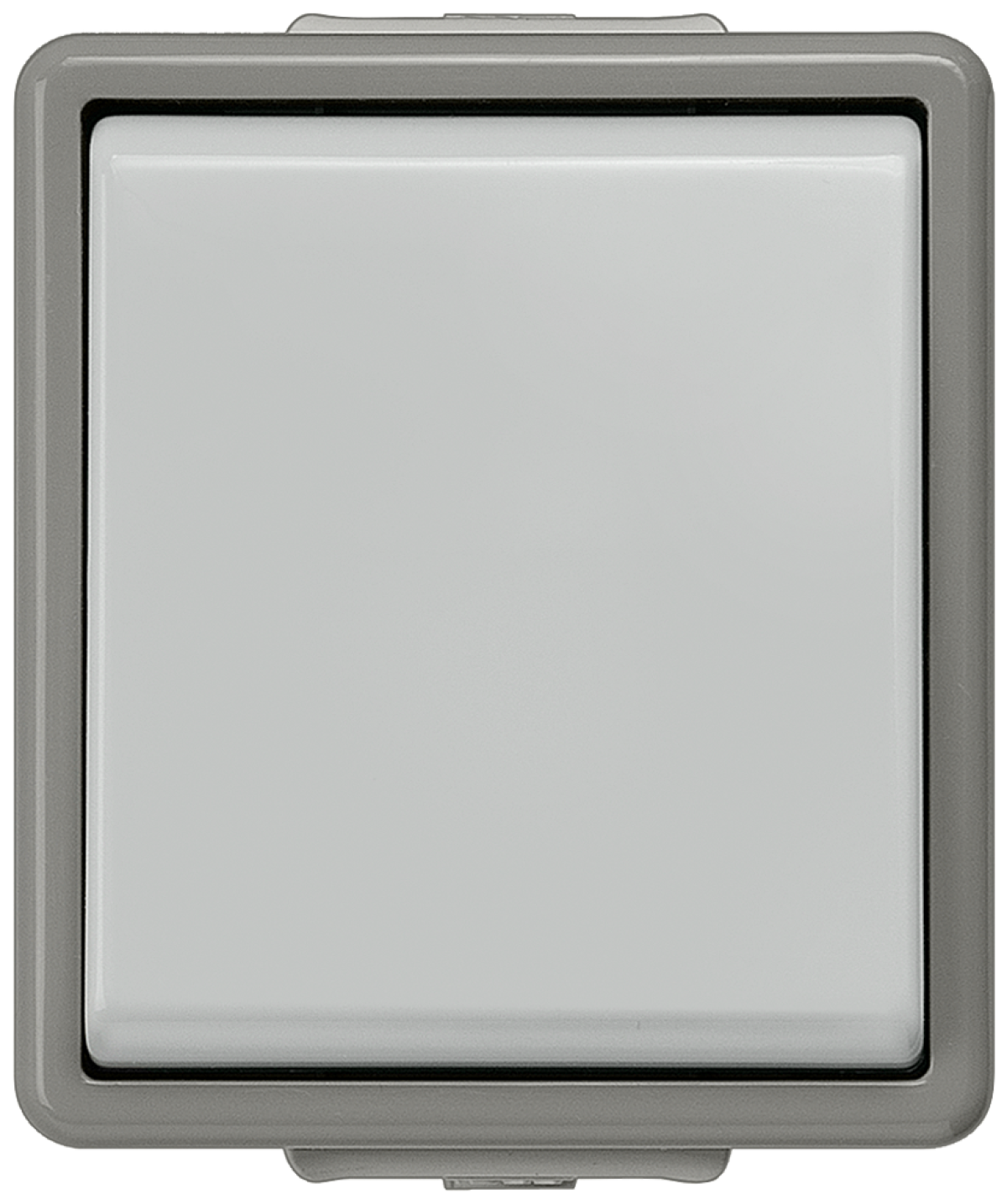

DELTA fläche IP44 surface-m. pushbutton, 1 CO
Nortécnica Ref:
EAN:
4001869060620
Description
Technical Information
Attributes
Nominal voltage
230
Mounting method
Surface mounted
Assembly arrangement
Basic element with complete housing
Operating method
Push button/touch control button
Colour
Grey
Model
Single push button
Halogen free
Yes
Connection type
Push-in clamp
Imprint
None
Surface protection
Other
With signal lamp
No
Rated current
10
Label spaceinformation surface
No
Monitoring contact
No
Material quality
Other
Número de polos
-
Material
Plastic
Type of fastening
Screw mounting
Number of rockers
1
With lighting
No
RAL-number similar
7035
Impact strength
-
With light source
-
Transparent
No
Surface finishing
Glossy
Suitable for degree of protection IP
IP44
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
Device width
66
Device height
75
Device depth
54
Number of modules module system
-
IFTTT support available
No
Min. depth of built-in installation box
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Number of revolving contacts
0
Contactless type
No
Anti-bacterial treatment
No
Brands
SIEMENS
Descrição Longa
DELTA flaeche IP44, AP Dark gray/light gray button, 10A 250V, 1 change-over contact can be used as NC contact 66x 75 mm DELTA switches and socket outlets – design and quality to perfection from Siemens. Our Delta flaeche IP 44 surface-mounting range provides you with an attractive design, enhanced safety and easy operation. So that the electrical installation does not get "wet feet". The Siemens surface-mounting program Delta flaeche IP 44 offers the following advantages: 1. Durable, high-impact thermoplastic enclosure. 2. Screwless terminals for switch and socket outlet inserts. 3. Insulated reset levers ensure touch protection. 4. Easy conductor releases at a press of a button, no tools required. 5. All terminals are designed as double terminals.
