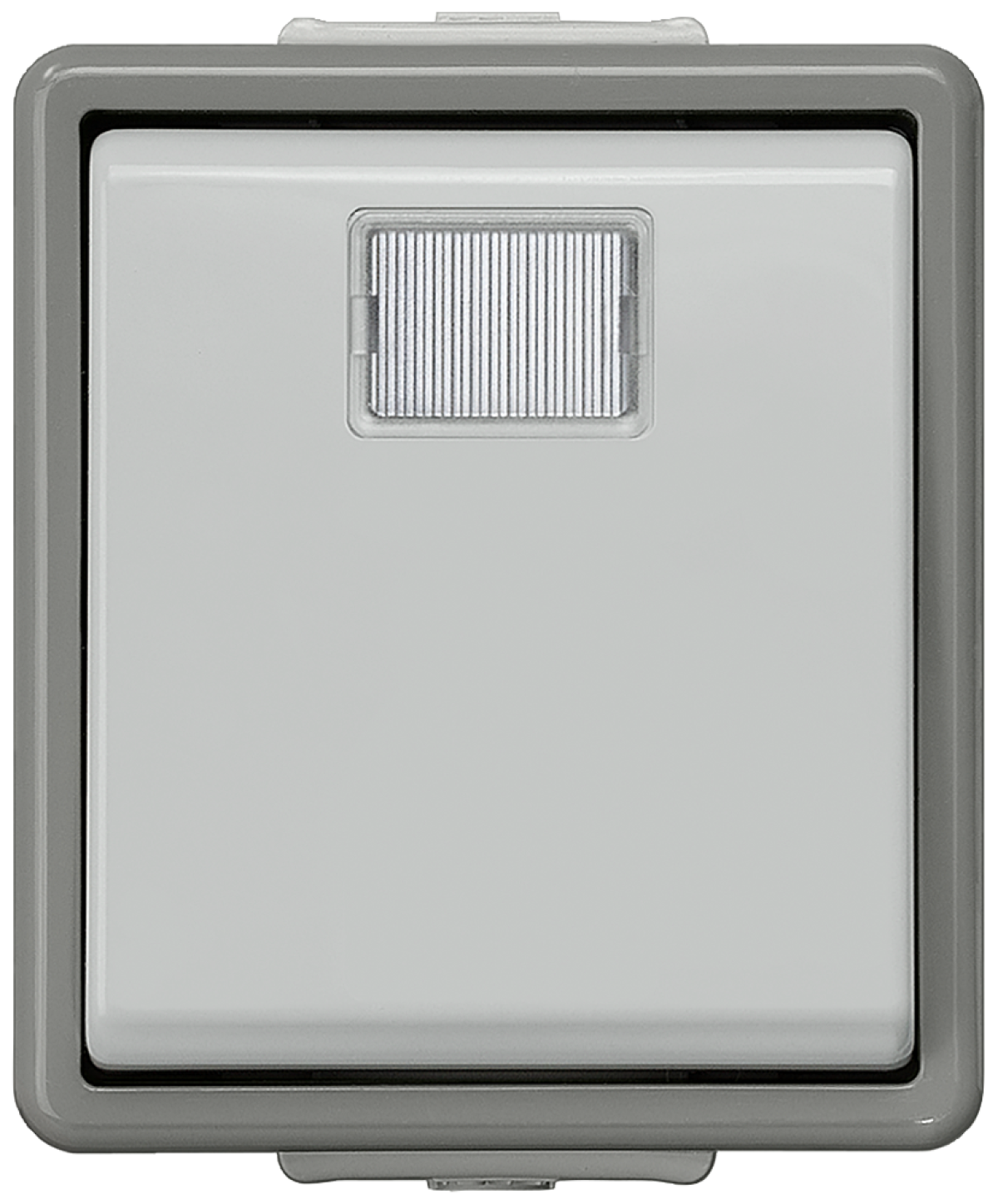

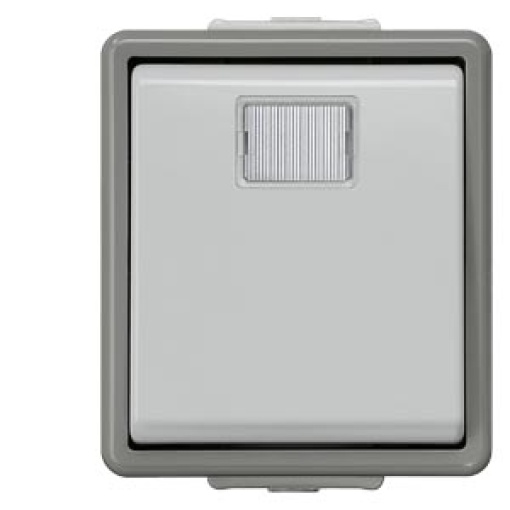

DELTA flaeche IP44, AP Dark gray/light gray button, 10A 250V with separate feedback signal with white window, 66x 75 mm DELTA switches and socket outlets – design and quality to perfection from Siemens. Our Delta flaeche IP 44 surface-mounting range provides you with an attractive design, enhanced safety and easy operation. So that the electrical installation does not get "wet feet". The Siemens surface-mounting program Delta flaeche IP 44 offers the following advantages: 1. Durable, high-impact thermoplastic enclosure. 2. Screwless terminals for switch and socket outlet inserts. 3. Insulated reset levers ensure touch protection. 4. Easy conductor releases at a press of a button, no tools required. 5. All terminals are designed as double terminals.
Switches, Dimmers, and Buttons
DELTA fläche IP44 surface-m. pushbutton with separate check-back indication, ...
Nortécnica Ref:
EAN:
4001869040585
Description
Technical Information
Attributes
Tensão nominal
230
Mounting method
Surface mounted
Assembly arrangement
Basic element with complete housing
Method of operation
Push button/touch control button
Colour
Grey
Model
Single push button
Halogen free
Yes
Connection type
Push-in clamp
Imprint
Other
Surface protection
Other
With signal lamp
No
Corrente nominal especificada
10
Label spaceinformation surface
No
Monitoring contact
Yes
Material quality
Other
Number of poles
-
Material
Plastic
Type of fastening
Screw mounting
Número de osciladores
1
With lighting
Yes
Número RAL semelhante
7035
Impact strength
-
With light source
-
Transparent
No
Surface finishing
Glossy
Suitable for degree of protection IP
IP44
Número de contatos como contato normalmente fechado
0
Número de contatos como contato normalmente aberto
1
Número de contatos como inversores
0
Largura do dispositivo
66
Altura do dispositivo
75
Profundidade do dispositivo
54
Número de módulos sistema de módulos
-
IFTTT support available
No
Min. profundidade da caixa de instalação embutida
-
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
Número de contactos rotativos
0
Contactless type
No
Anti-bacterial treatment
No
Brands
SIEMENS
Long Description
DELTA flaeche IP44, AP Dark gray/light gray button, 10A 250V with separate feedback signal with white window, 66x 75 mm DELTA switches and socket outlets – design and quality to perfection from Siemens. Our Delta flaeche IP 44 surface-mounting range provides you with an attractive design, enhanced safety and easy operation. So that the electrical installation does not get "wet feet". The Siemens surface-mounting program Delta flaeche IP 44 offers the following advantages: 1. Durable, high-impact thermoplastic enclosure. 2. Screwless terminals for switch and socket outlet inserts. 3. Insulated reset levers ensure touch protection. 4. Easy conductor releases at a press of a button, no tools required. 5. All terminals are designed as double terminals.
