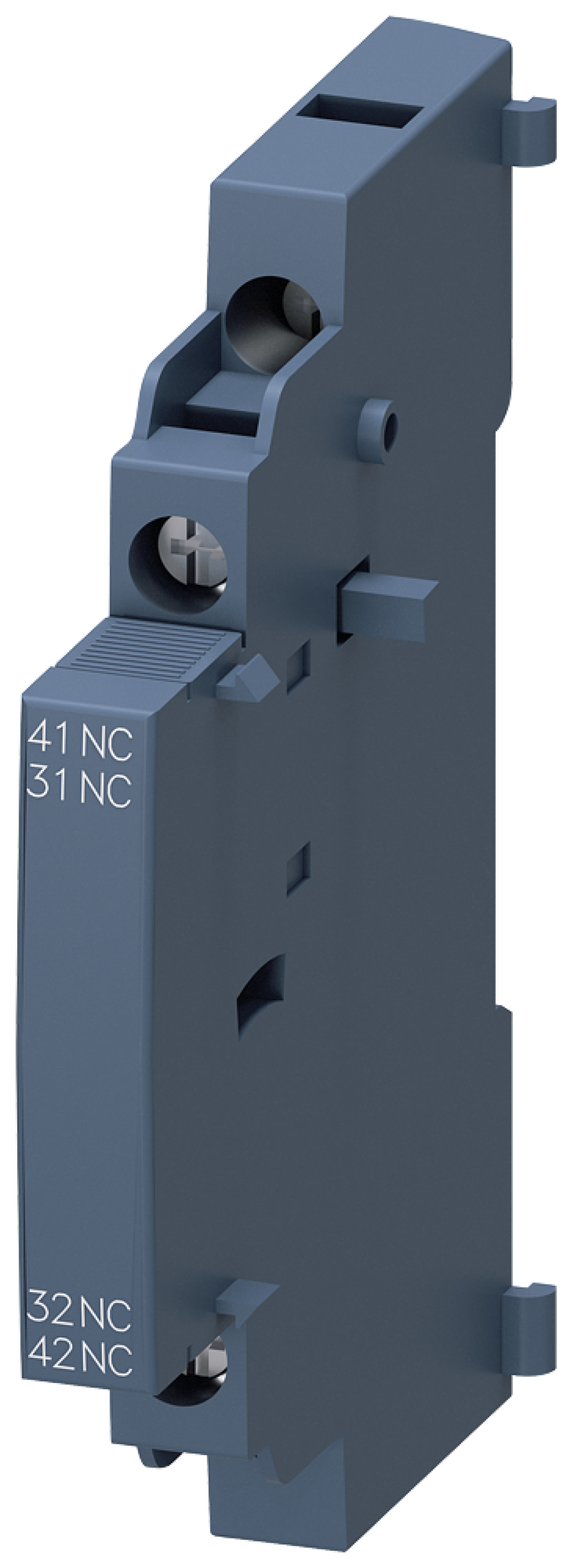

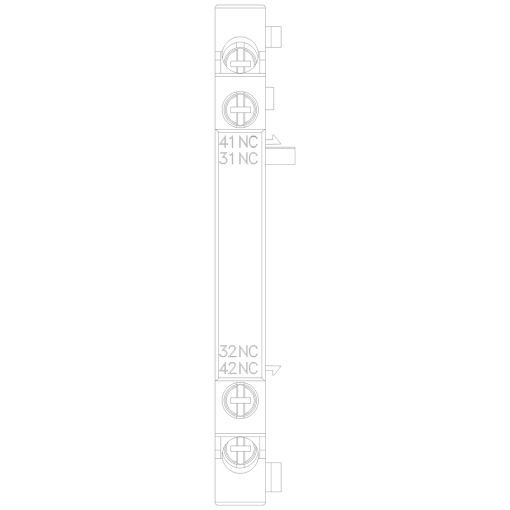

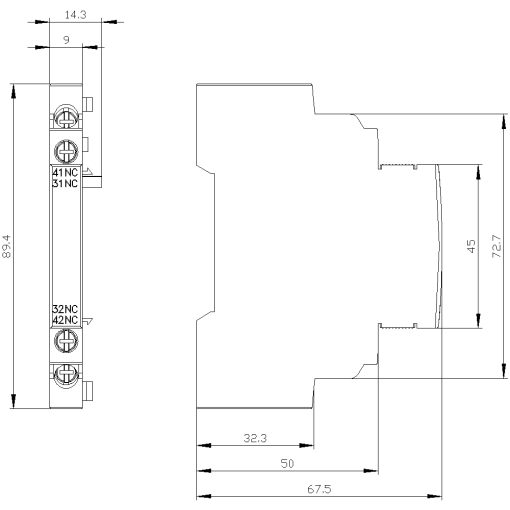

Auxiliary switch can be mounted on the side 2 NC, screw terminal for circuit breaker 3RV2 Simple, efficient and always up to date - SIRIUS modular system.
Cutting and Protection Devices
Auxiliary switch attachable on the side 2 NC for circuit breaker S00S0
Nortécnica Ref:
EAN:
4011209737099
Description
Technical Information
Attributes
Mounting method
Other
Model
Clip-on
Lamp holder
None
Rated operation current Ie at AC-15, 230 V
4
Type of electric connection
Screw connection
Number of fault-signal switches
0
Number of contacts as normally closed contact
2
Number of contacts as normally open contact
0
Number of contacts as change-over contact
0
Brands
SIEMENS
