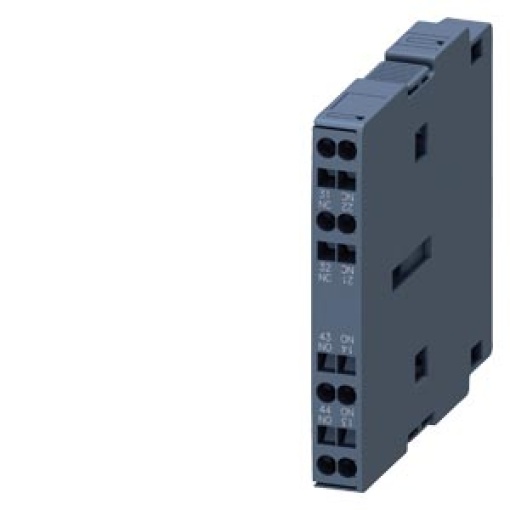

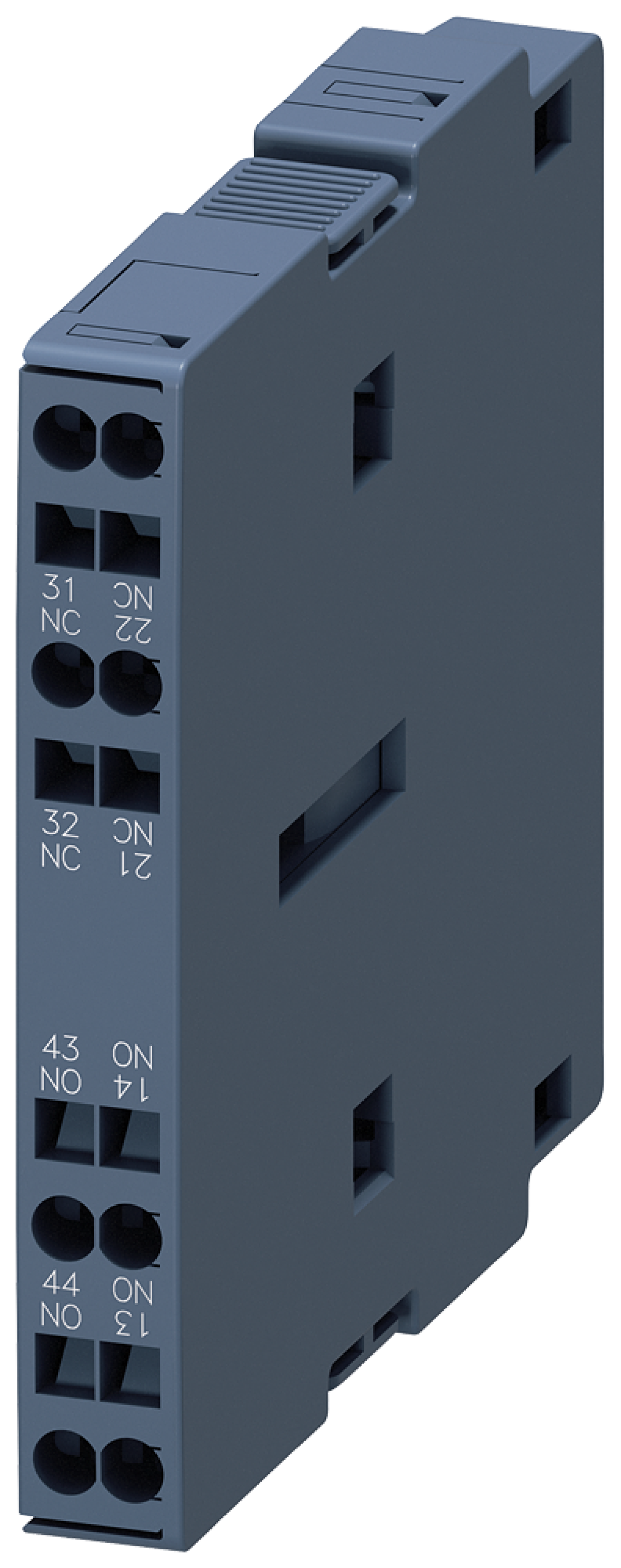

first lateral auxiliary switch 1 NO, 1 NC, encapsulated (solid-state compatible), spring-type terminal, for contactors 3RT1 Reusable packaging = 144 units auxiliary switch SIRIUS 3RH19 for the expansion of auxiliary contacts in the control circuit. This 3RH19 auxiliary switch can be fitted to 3RT1 contactors of sizes S0 - S12 without tools. The 3RH19/3RH29 auxiliary switches are available as versions for front or lateral mounting, with up to four instantaneous contacts or up to two leading NO and NC contacts. The auxiliary switches can be designed as positively driven contacts in 3RH contactor relays or also as mirror contacts in the case of 3RT power contactors. All of them are available with screw terminal and spring-type terminal. Simple, efficient and always up to date - SIRIUS modular system.
Cutting and Protection Devices
first lateral auxiliary switch 1 NO, 1 NC, encapsulated solid-state compatib...
Nortécnica Ref:
EAN:
4011209680982
Description
Technical Information
Attributes
Mounting method
Other
Model
Clip-on
Lamp holder
None
Corrente nominal de operação Ie em AC-15, 230 V
-
Type of electric connection
Spring clamp connection
Number of fault-signal switches
0
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Brands
SIEMENS
Long Description
first lateral auxiliary switch 1 NO, 1 NC, encapsulated (solid-state compatible), spring-type terminal, for contactors 3RT1 Reusable packaging = 144 units auxiliary switch SIRIUS 3RH19 for the expansion of auxiliary contacts in the control circuit.
This 3RH19 auxiliary switch can be fitted to 3RT1 contactors of sizes S0 - S12 without tools.
The 3RH19/3RH29 auxiliary switches are available as versions for front or lateral mounting, with up to four instantaneous contacts or up to two leading NO and NC contacts. The auxiliary switches can be designed as positively driven contacts in 3RH contactor relays or also as mirror contacts in the case of 3RT power contactors. All of them are available with screw terminal and spring-type terminal.
Simple, efficient and always up to date - SIRIUS modular system.
