auxiliary switch, solid-state compatible, lateral, 1 NO + 1 NC, on the left: 41/42, 53/54, current path: 1 NC, 1 NO, on the right: 23/24, 31/32, current path: 1 NO, 1 NC, spring-loaded terminal, for contactors 3RT2.1 auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts in the control circuit. 3RH29 auxiliary switches can be laterally mounted onto 3RT2 contactors without tools regardless of their size. The 3RH19/3RH29 auxiliary switches are available as versions for front or lateral mounting, with up to four instantaneous contacts or up to two leading NO and NC contacts. The auxiliary switches can be designed as positively driven contacts in 3RH contactor relays or also as mirror contacts in the case of 3RT power contactors. All of them are available with screw terminal and spring-type terminal. Simple, efficient and always up to date - SIRIUS modular system.
Cutting and Protection Devices

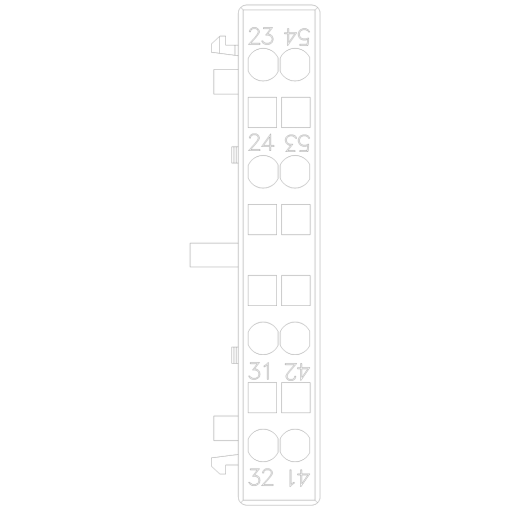

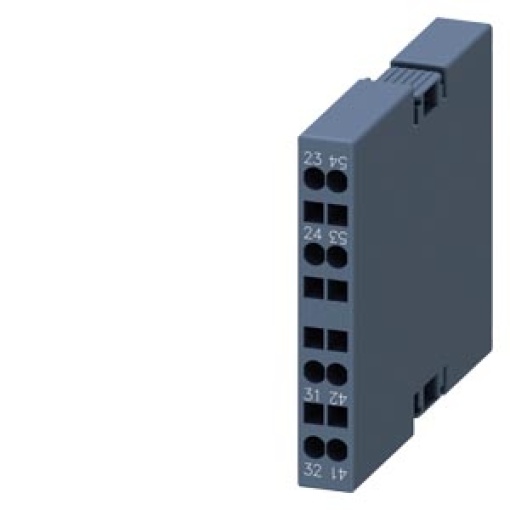

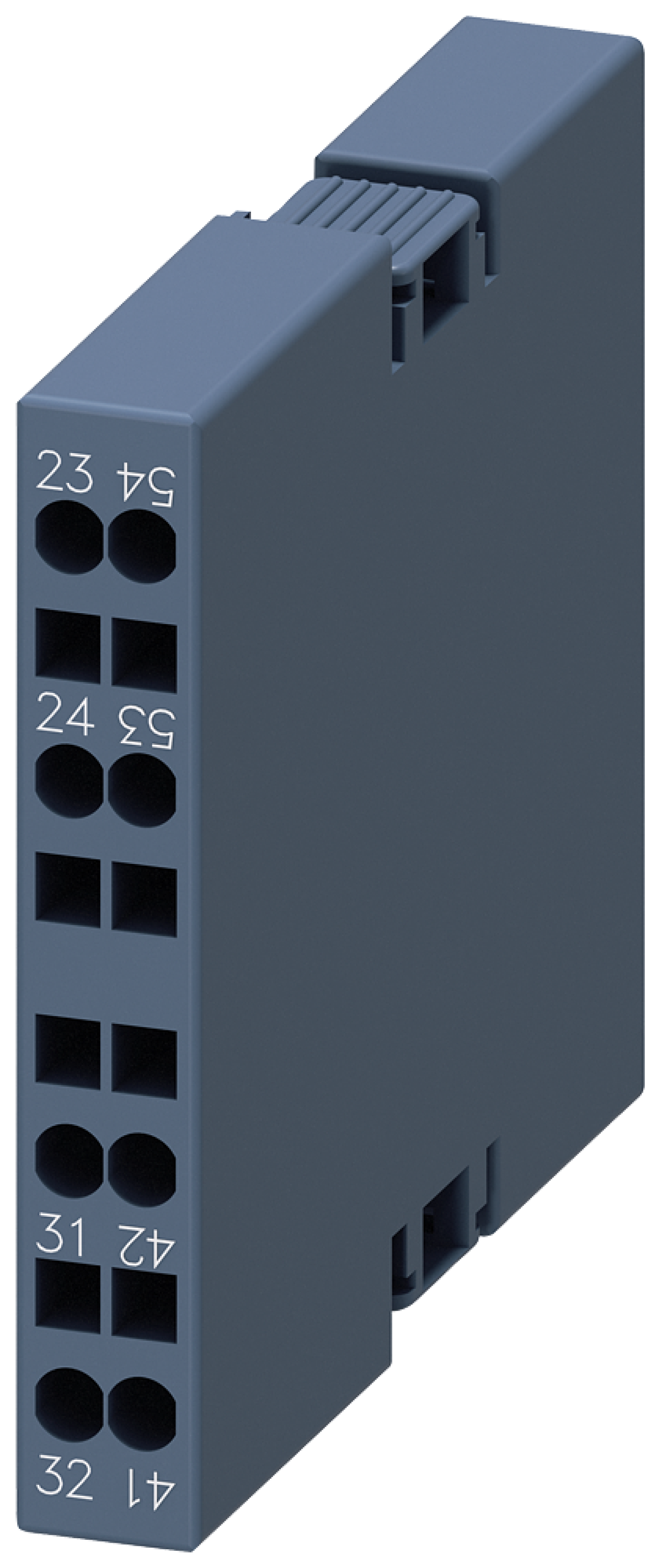

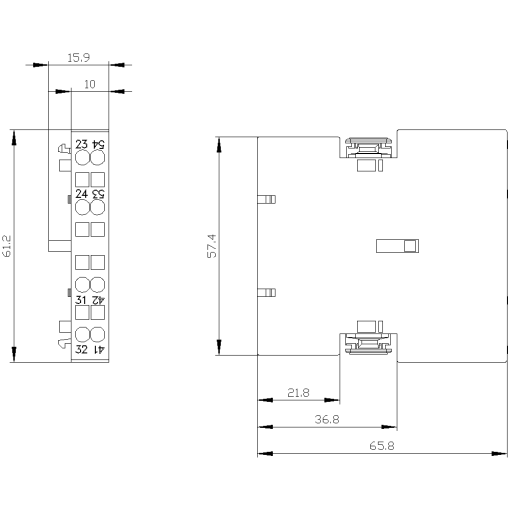

Solid-state compatible auxiliary switch lateral, current paths 1 NO, 1 NC
Nortécnica Ref:
EAN:
4011209787209
Description
Technical Information
Attributes
Mounting method
Other
Model
Clip-on
Lamp holder
None
Corrente nominal de operação Ie em AC-15, 230 V
-
Type of electric connection
Spring clamp connection
Number of fault-signal switches
0
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
Brands
SIEMENS
Descrição Longa
auxiliary switch, solid-state compatible, lateral, 1 NO + 1 NC, on the left: 41/42, 53/54, current path: 1 NC, 1 NO, on the right: 23/24, 31/32, current path: 1 NO, 1 NC, spring-loaded terminal, for contactors 3RT2.1 auxiliary switch SIRIUS 3RH29 for the expansion of auxiliary contacts in the control circuit.
3RH29 auxiliary switches can be laterally mounted onto 3RT2 contactors without tools regardless of their size.
The 3RH19/3RH29 auxiliary switches are available as versions for front or lateral mounting, with up to four instantaneous contacts or up to two leading NO and NC contacts. The auxiliary switches can be designed as positively driven contacts in 3RH contactor relays or also as mirror contacts in the case of 3RT power contactors. All of them are available with screw terminal and spring-type terminal.
Simple, efficient and always up to date - SIRIUS modular system.
