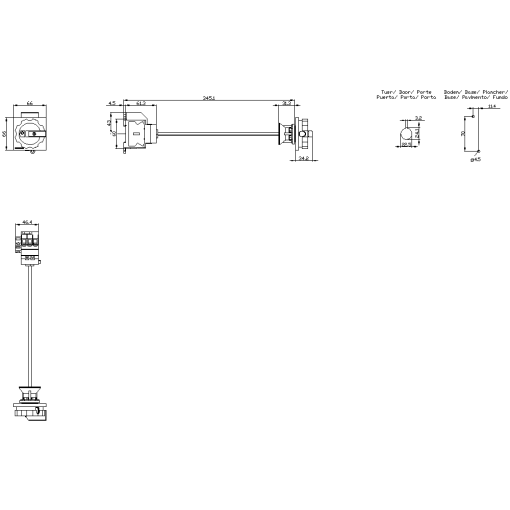

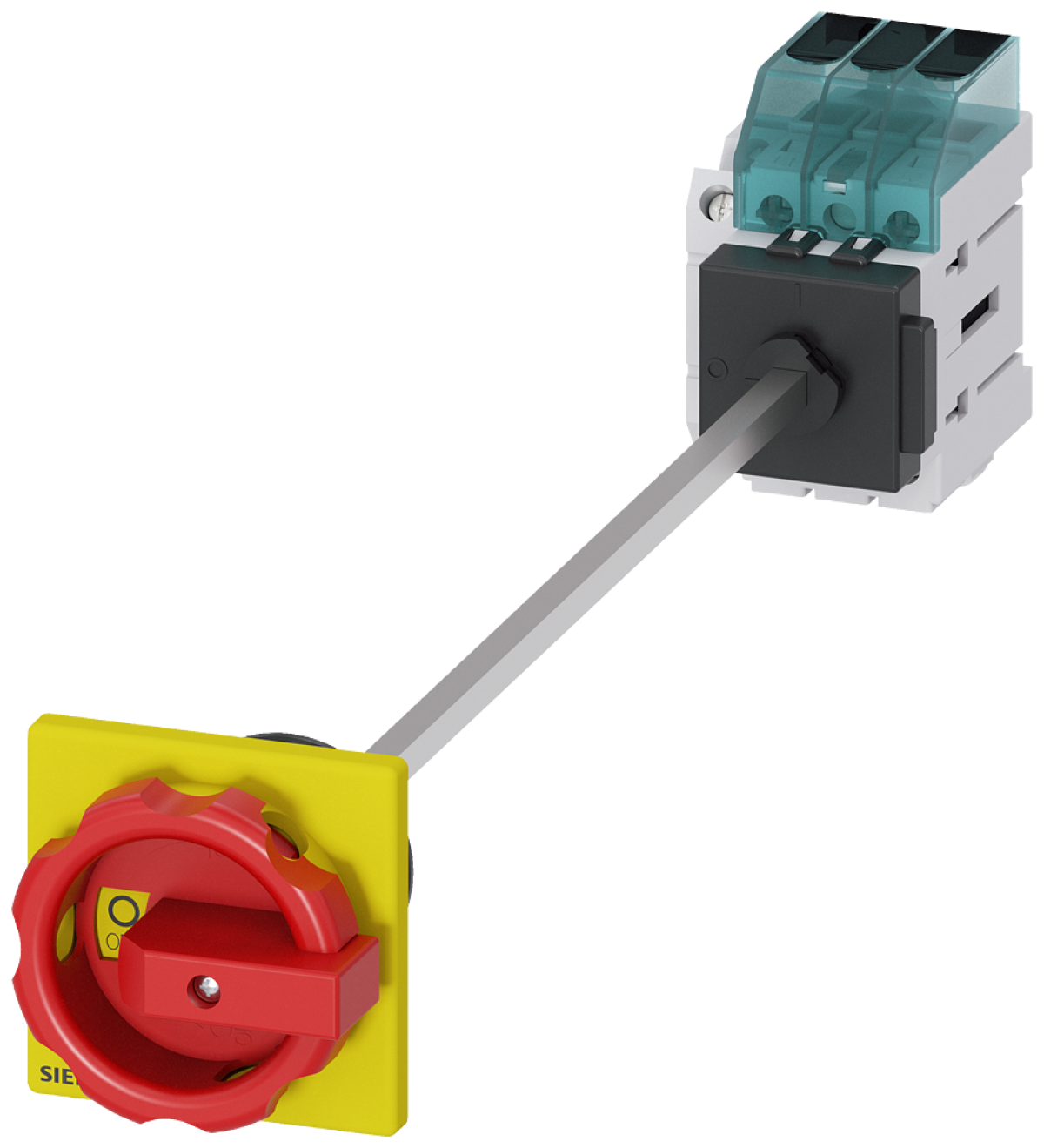

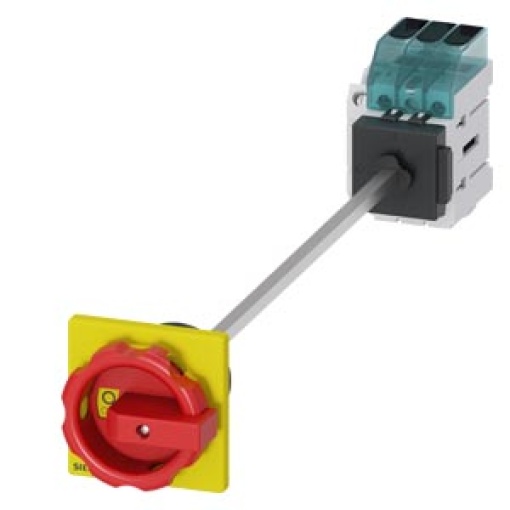

Load disconnector 3LD3, Iu 63 A Main switch 3-pole Rated operating capacity at AC-23 A at 400V 22.0 kW floor mounting Basic switch with door coupling Central hole mounting 22.5mm Rotary actuator red / yellow 66 x 66 mm with auxiliary switch 1OE + 1S
Cutting and Protection Devices
Switch disconnector 3LD3, Iu 63 A main control switch 3-pole
Nortécnica Ref:
EAN:
4001869551937
Description
Technical Information
Attributes
Rated operation power at AC-3, 400 V
19
Número de contatos auxiliares como contato normalmente aberto
1
Número de contatos auxiliares como contato normalmente fechado
1
Corrente permanente nominal Iu
63
Number of poles
3
Rated operating voltage
-
Corrente condicional nominal de curto-circuito Iq
-
Degree of protection IP, front side
IP65
Número de contatos auxiliares como contato de comutação
0
Number of switches
1
Interlockable
Yes
Motor drive integrated
No
Type of electrical connection of main circuit
Frame clamp
Version as emergency stop installation
Yes
Type of control element
Short rotary handle
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
22
Corrente nominal suportável lcw atual
1
Colour control element
Red
EF007243
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
Yes
Suitable for distribution board installation
-
Suitable for intermediate mounting
-
Max. rated operation voltage Ue AC
690
Motor drive optional
No
Voltage release optional
No
Device construction
-
Rated permanent current at AC-21, 400 V
63
Switching power at 400 V
-
Version as reversing switch
No
Rated permanent current at AC-23, 400 V
43
Degree of protection NEMA
Other
Brands
SIEMENS
Long Description
Load disconnector 3LD3, Iu 63 A Main switch 3-pole Rated operating capacity at AC-23 A at 400V 22.0 kW floor mounting Basic switch with door coupling Central hole mounting 22.5mm Rotary actuator red / yellow 66 x 66 mm with auxiliary switch 1OE + 1S
