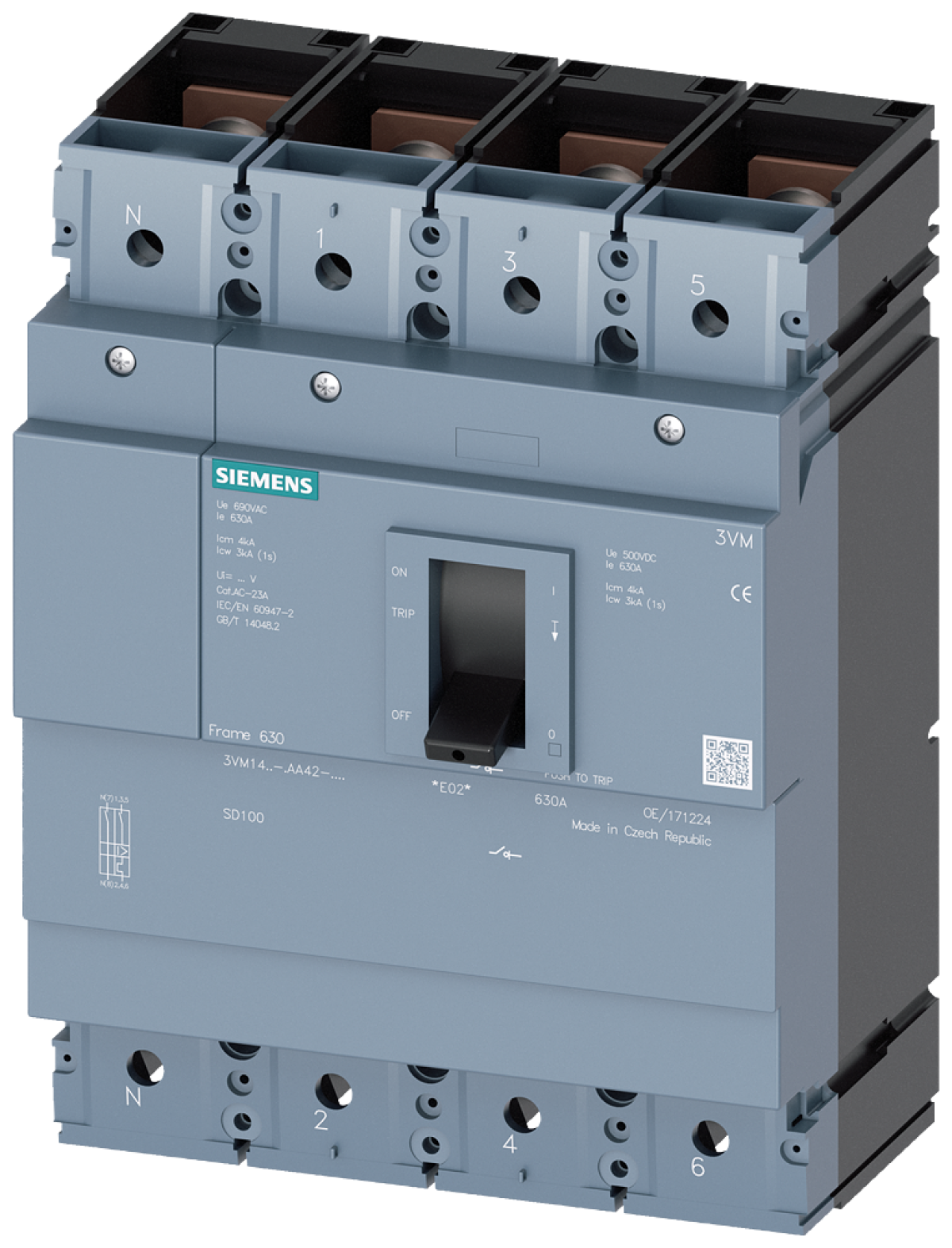

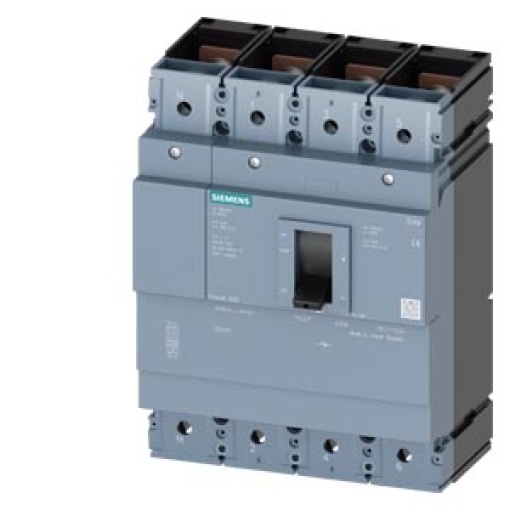

switch disconnector 3VM1 IEC frame 630 4-pole SD100, In=500A without overload protection w/o short-circuit protection nut keeper kit
Cutting and Protection Devices
Switch disconnector 3VM1 IEC frame 630 4-pole SD100, In500 A without overloa...
Nortécnica Ref:
EAN:
4042948800515
Description
Technical Information
Attributes
Rated operation power at AC-3, 400 V
-
Número de contatos auxiliares como contato normalmente aberto
0
Número de contatos auxiliares como contato normalmente fechado
0
Corrente permanente nominal Iu
500
Number of poles
4
Rated operating voltage
-
Corrente condicional nominal de curto-circuito Iq
-
Degree of protection IP, front side
IP40
Número de contatos auxiliares como contato de comutação
0
Number of switches
-
Interlockable
No
Motor drive integrated
No
Type of electrical connection of main circuit
Rail connection
Version as emergency stop installation
Yes
Type of control element
Rocker lever
Version as main switch
Yes
Version as safety switch
Yes
Version as maintenance-service switch
Yes
Rated operation power at AC-23, 400 V
-
Corrente nominal suportável lcw atual
-
Colour control element
Black
EF007243
-
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
-
Suitable for intermediate mounting
-
Max. rated operation voltage Ue AC
500
Motor drive optional
Yes
Voltage release optional
Yes
Device construction
-
Rated permanent current at AC-21, 400 V
500
Switching power at 400 V
-
Version as reversing switch
-
Rated permanent current at AC-23, 400 V
500
Degree of protection NEMA
Other
Brands
SIEMENS
Long Description
switch disconnector 3VM1 IEC frame 630 4-pole SD100, In=500A without overload protection w/o short-circuit protection nut keeper kit
