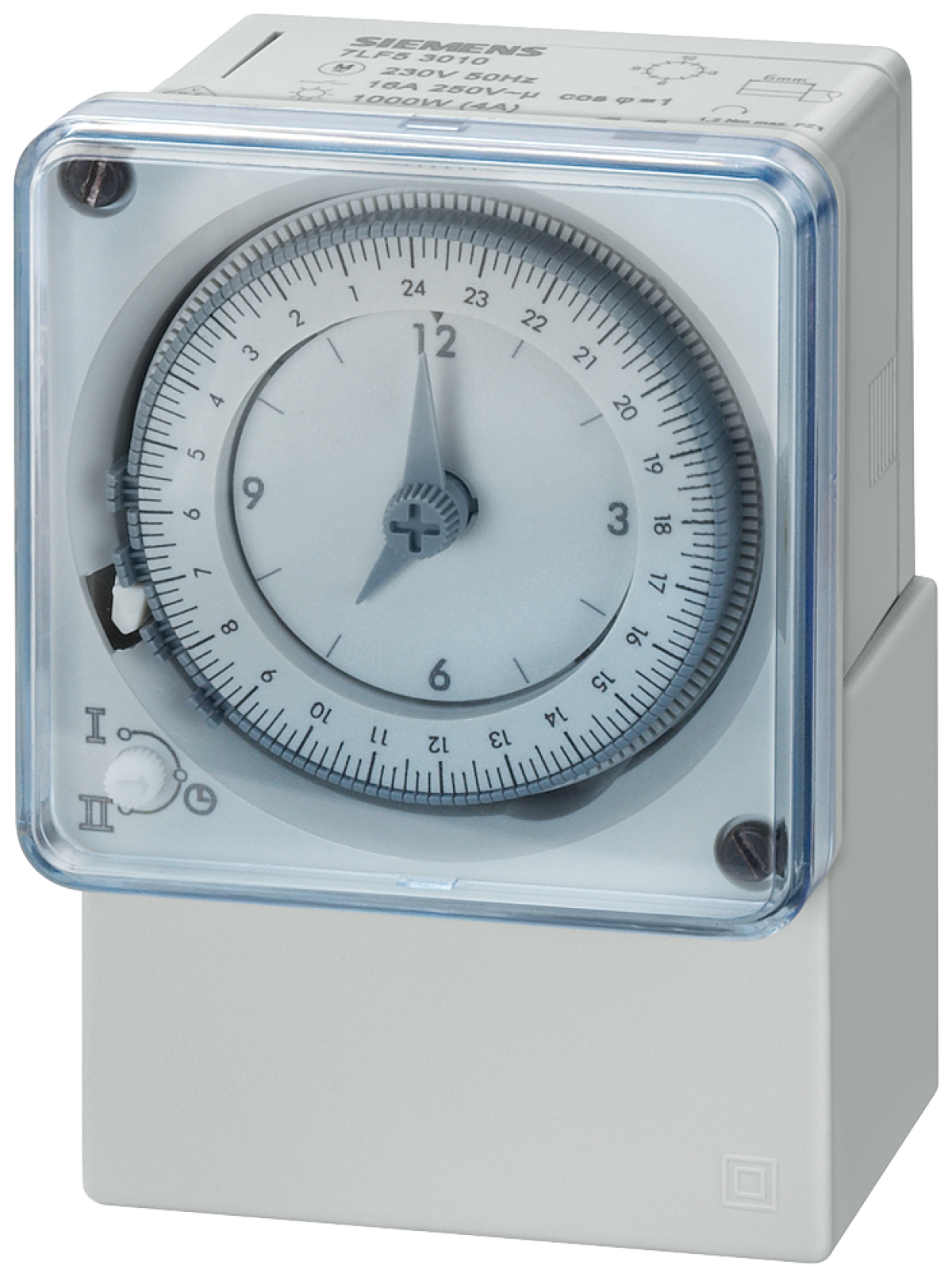

Synchronous time switch Day 1 change-over contact 230V/50Hz Surface-mounting Mechanical time switch SENTRON 7LF5 for time-controlled switching of electrical loads, e.g. lighting or industrial control systems. The mechanical time switches from Siemens are especially rugged. The 7LF5 timers are available as synchronous or quartz time switches for DIN rail or wall mounting with different time ranges and with different auxiliary contacts. 7LF timers - Safety, comfort and energy saving.
Management and Measuring Devices
Synchronous time switch day 1 CO contact 230 V50 Hz surface-mounting
Nortécnica Ref:
EAN:
4001869335704
Description
Technical Information
Attributes
Mounting method
Other
Width
69
Height
110
Depth
34
Number of channels
1
Weekly program
No
Annual program
No
Contact type
EV000201
Width in number of modular spacings
-
60 min program
No
24 h program
Yes
Mains synchronous
Yes
Quartz controlled
No
Automatic switching summerwinter time
No
Suitable for manual operation
Yes
Switching preselection
Yes
Voltage type supply voltage
AC
Potential free switch contact
Yes
Supply voltage
230
Frequency supply voltage
50
Autonomy in years
0
Autonomy in hours
0
EF004855
30
EF004856
-
Corrente nominal de comutação a 250 V CA
16
Divisão por segmento de programa 1
10
Divisão por segmento de programa 2
-
Degree of protection IP
IP20
Accuracy per day
-
Max. switching power LED
-
Brands
SIEMENS
Long Description
Synchronous time switch Day 1 change-over contact 230V/50Hz Surface-mounting Mechanical time switch SENTRON 7LF5 for time-controlled switching of electrical loads, e.g. lighting or industrial control systems.
The mechanical time switches from Siemens are especially rugged.
The 7LF5 timers are available as synchronous or quartz time switches for DIN rail or wall mounting with different time ranges and with different auxiliary contacts.
7LF timers - Safety, comfort and energy saving.
