Terminal, quick-connect, isolating terminal, 1.5 mm², gray Terminal block connection technology for various industrial applications and modern building installation from Siemens. Regardless of whether you decide on the screw-type, spring-loaded, push-in or quick connection: All of the connection technologies can be freely combined. The labeling and test accessories are standardized and can be used interchangeably. Many applications can be implemented in industry, functional and residential buildings with the terminal blocks from SIEMENS. This gives you access to the right connection technology for every connection system. Key features of the Siemens row terminals: 1. Permanently safe contact. 2. Easy to disconnect connection of electrical connections such as cables and wires. 3. Implementation of a large number of applications. 4. User-friendly and easy installation and connection technology. 5. Comprehensive and standardized accessories. 6. Reliable safety during installation with standard touch protection. 7. Optimized technology for your safety – only from Siemens.
Accessories and Components

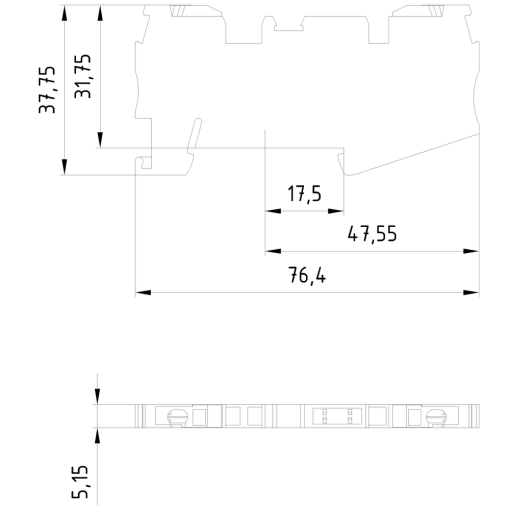

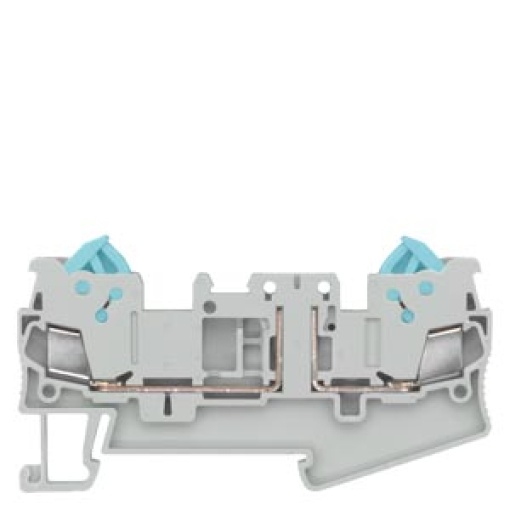

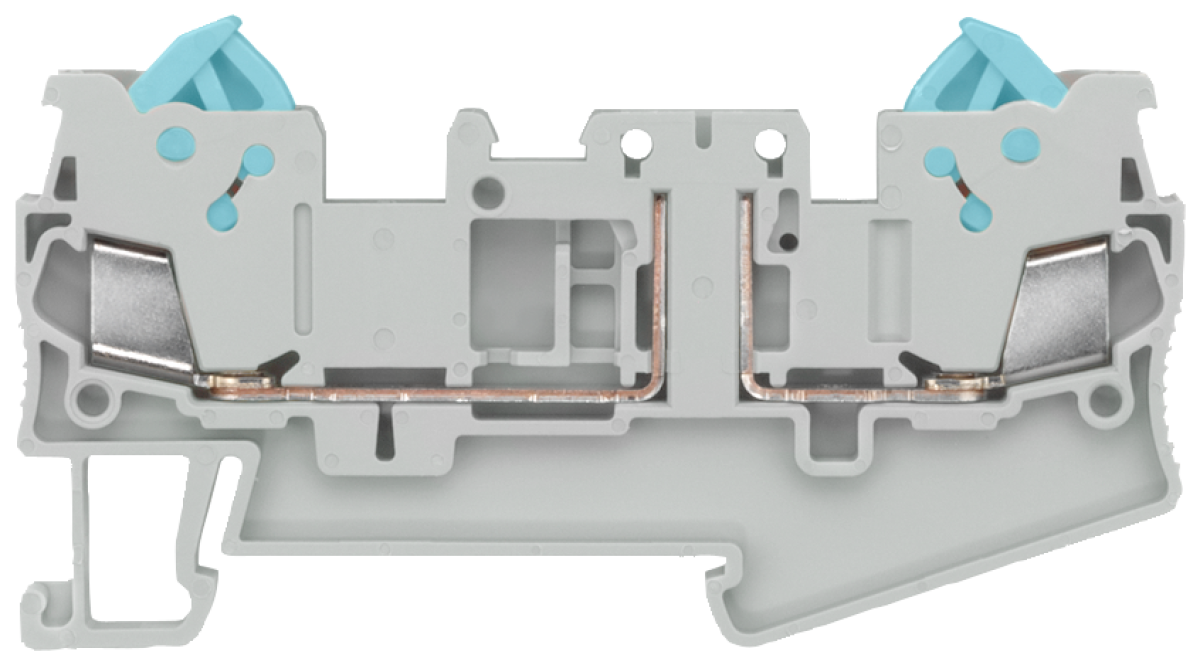

Isolating terminal with quick-connect technology, cross-section 0.25-1.5 mm2...
Nortécnica Ref:
EAN:
4001869344867
Description
Technical Information
Attributes
Mounting method
DIN rail (top hat rail) 35 mm
Colour
Grey
Largura
5.15
Altura
76.429999999
Profundidade
39.3
Tensão especificada de funcionamento
400
Operating temperature
-105
Classe de inflamabilidade do material de selagem de acordo com UL 94
EV004429
Closing plate required
-
Type of electrical connection 1
Insulation displacement connection
Type of electrical connection 2
-
Type of slitting
Other
Type of cross disconnection
None
With integrated test socket
No
Number of levels
1
Number of clamp positions per level
2
Internally connected stages
-
Connectable conductor cross section solid-core
0.25
Connectable conductor cross section fine-strand with cable end sleeve
-
Connectable conductor cross section fine-strand without cable end sleeve
0.25
Connectable conductor cross section multi-wired
-
Material insulation body
Other
Corrente nominal especificada In
17.5
Brands
SIEMENS
Descrição Longa
Terminal, quick-connect, isolating terminal, 1.5 mm², gray Terminal block connection technology for various industrial applications and modern building installation from Siemens. Regardless of whether you decide on the screw-type, spring-loaded, push-in or quick connection: All of the connection technologies can be freely combined. The labeling and test accessories are standardized and can be used interchangeably. Many applications can be implemented in industry, functional and residential buildings with the terminal blocks from SIEMENS. This gives you access to the right connection technology for every connection system. Key features of the Siemens row terminals: 1. Permanently safe contact. 2. Easy to disconnect connection of electrical connections such as cables and wires. 3. Implementation of a large number of applications. 4. User-friendly and easy installation and connection technology. 5. Comprehensive and standardized accessories. 6. Reliable safety during installation with standard touch protection. 7. Optimized technology for your safety – only from Siemens.
