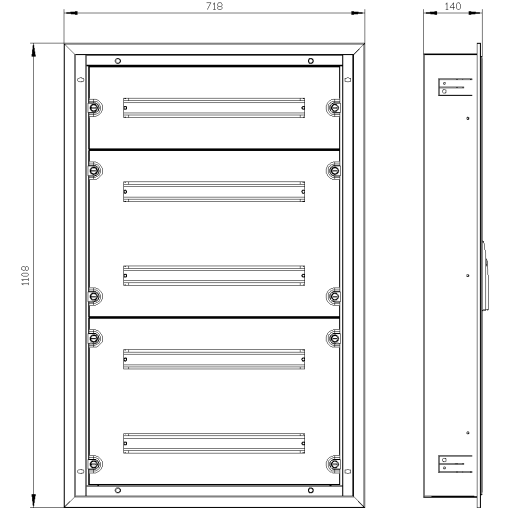

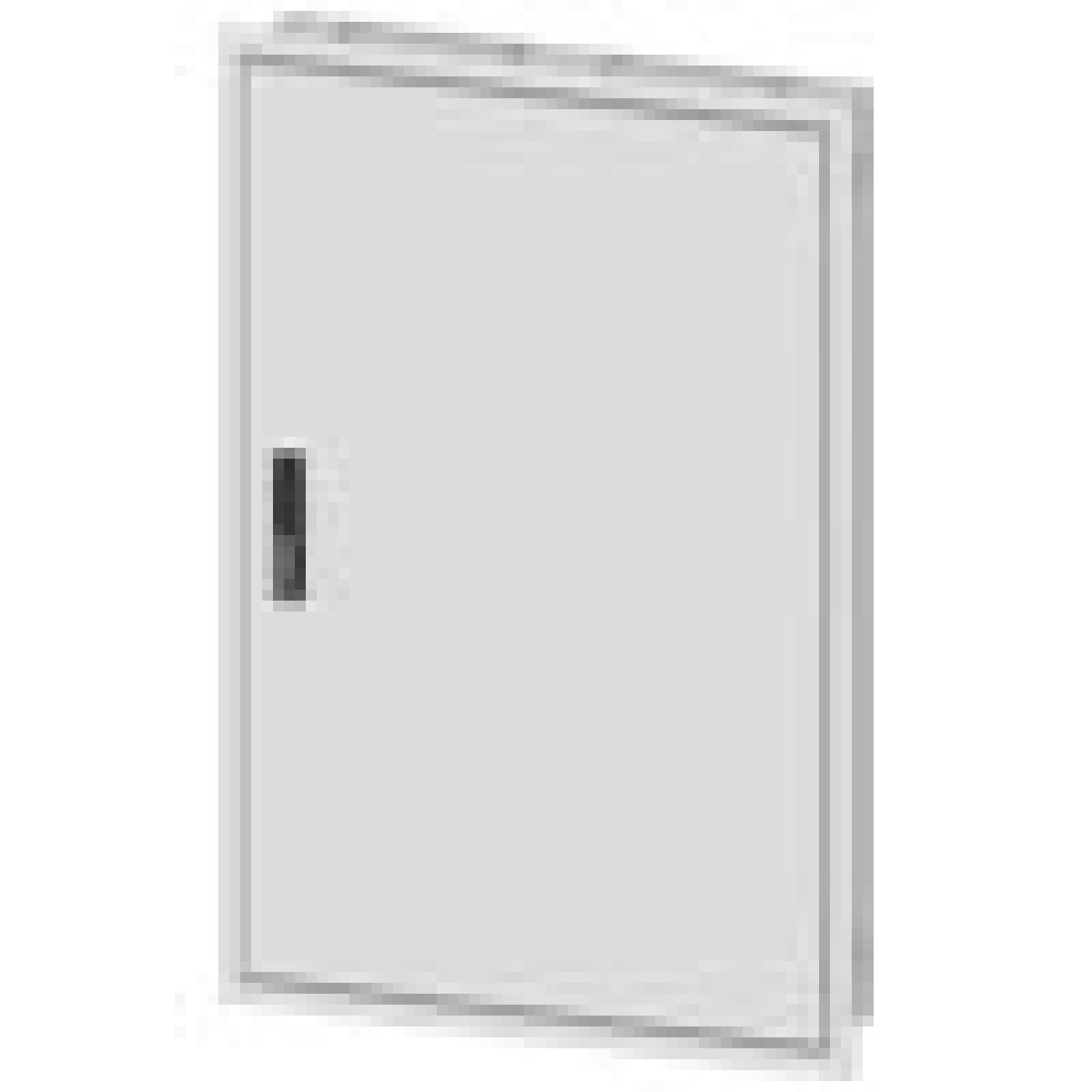

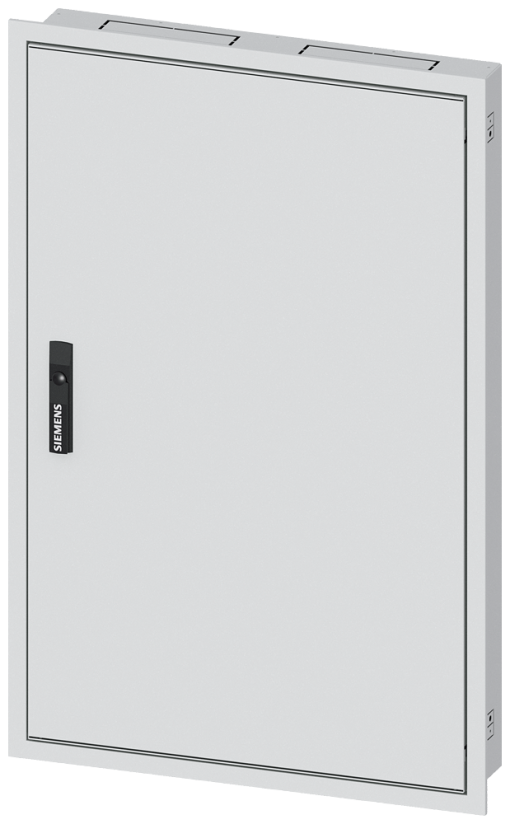

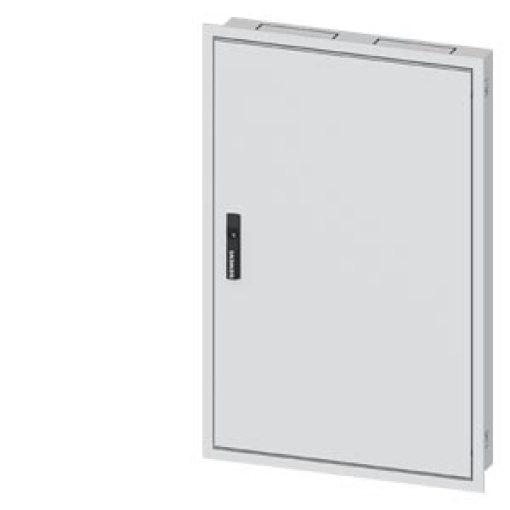

ALPHA 125 UNIVERSAL, wall-mounted cabinet, Flush-mounting, with distribution board panel, IP31, Protection class 1, H: 1000 mm, W: 600 mm, T: 140 mm, RAL 7035, with door The ALPHA UNIVERSAL distribution board – a complete system of wall-mounted and floor-mounted distribution boards for installing devices up to 800 A. ALPHA UNIVERSAL distribution systems are tested according to IEC 61439. Due to the modular design and a common platform structure, the device-specific installation kits can be integrated into different distributor variants. This facilitates easy planning and installation. Equipping is done individually and on a project-specific basis. The SIMARIS configuration software provides support from planning to documentation of standard and power distribution boards. ALPHA UNIVERSAL distribution systems are available in a wide range of designs and many special colors. Glass and steel door options are available. ALPHA UNIVERSAL – the system concept counts.
Cabinets
ALPHA 125 UNIVERSAL, wall-mounted cabinet, Flush-mounting, with distribution ...
Nortécnica Ref:
EAN:
4001869373577
Description
Technical Information
Attributes
Mounting method
Flush-mounted
Protection class according to IEC 61140
-
Colour
Grey
Width
600
Height
1000
Depth
140
RAL-number
7035
With mounting plate
No
Surface protection
Powder coating
Built-in depth
140
Number of rows
5
Type of covering
Optional
Number of conduit inlets
-
Extension possible
Yes
Inner depth
-
Housing material
Steel
Circuit integrity
None
Width in number of modular spacings
120
Suitable for outdoor use
No
Impact strength
IK09
Number of modules
-
Type of door
-
Degree of protection IP
IP31
Transparent coverdoor
Yes
With lock
No
Suitable for lightning protection
Yes
Nominal current In
125
Material plate thickness cabinet
-
Material plate thickness doorcover
-
Cover model
None
Number of openings for flange plates
2
Degree of protection NEMA
Other
Cover with overpressure release
-
Brands
SIEMENS
Long Description
ALPHA 125 UNIVERSAL, wall-mounted cabinet, Flush-mounting, with distribution board panel, IP31, Protection class 1, H: 1000 mm, W: 600 mm, T: 140 mm, RAL 7035, with door The ALPHA UNIVERSAL distribution board – a complete system of wall-mounted and floor-mounted distribution boards for installing devices up to 800 A.
ALPHA UNIVERSAL distribution systems are tested according to IEC 61439. Due to the modular design and a common platform structure, the device-specific installation kits can be integrated into different distributor variants. This facilitates easy planning and installation. Equipping is done individually and on a project-specific basis. The SIMARIS configuration software provides support from planning to documentation of standard and power distribution boards.
ALPHA UNIVERSAL distribution systems are available in a wide range of designs and many special colors. Glass and steel door options are available.
ALPHA UNIVERSAL – the system concept counts.
