Transformer cabinet safety class 1, IP30 h=1950 w=300 d=400 sheet metal door closed sidewalls The ALPHA distribution board – a complete system of wall-mounted and floor-mounted distribution boards for installing devices up to 1250 A. ALPHA distribution systems are tested according to IEC 61439. Due to the modular design and a common platform structure, the device-specific installation kits can be integrated into different distributor variants. This facilitates easy planning and installation. Equipping is done individually and on a project-specific basis. The SIMARIS configuration software providessupport from planning to documentation of standard and power distribution boards. ALPHA distribution systems are available in a wide range of designs and many special colors. Glass and steel door options are available. ALPHA – the system concept counts.
Cabinets

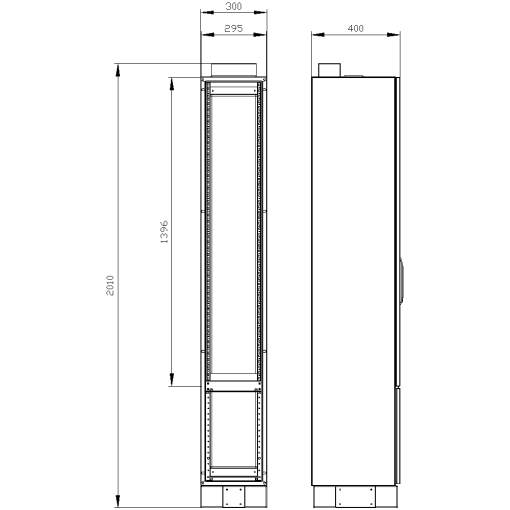

ALPHA DIN transformer cabinet H1950 W300 D400 incl. 100 mm base, sheet-ste...
Nortécnica Ref:
EAN:
4001869566252
Description
Technical Information
Attributes
Mounting method
Surface mounted
Protection class according to IEC 61140
-
Colour
Grey
Width
300
Height
1950
Depth
400
RAL-number
7035
With mounting plate
No
Surface protection
Powder coating
Built-in depth
400
Quantidade de filas
9
Type of covering
Optional
Number of conduit inlets
-
Extension possible
Yes
Inner depth
-
Housing material
Steel
Circuit integrity
None
Width in number of modular spacings
108
Suitable for outdoor use
No
Impact strength
IK09
Number of modules
-
Type of door
-
Degree of protection IP
IP30
Transparent coverdoor
Yes
With lock
No
Suitable for lightning protection
-
Nominal current In
1250
Material plate thickness cabinet
-
Material plate thickness doorcover
0.75
Cover model
None
Number of openings for flange plates
1
Degree of protection NEMA
Other
Cover with overpressure release
-
Brands
SIEMENS
Descrição Longa
Transformer cabinet safety class 1, IP30 h=1950 w=300 d=400 sheet metal door closed sidewalls The ALPHA distribution board – a complete system of wall-mounted and floor-mounted distribution boards for installing devices up to 1250 A.
ALPHA distribution systems are tested according to IEC 61439. Due to the modular design and a common platform structure, the device-specific installation kits can be integrated into different distributor variants. This facilitates easy planning and installation. Equipping is done individually and on a project-specific basis. The SIMARIS configuration software providessupport from planning to documentation of standard and power distribution boards.
ALPHA distribution systems are available in a wide range of designs and many special colors. Glass and steel door options are available.
ALPHA – the system concept counts.
