Allows for the detailed measurement of production facilities.
Management and Measuring Devices

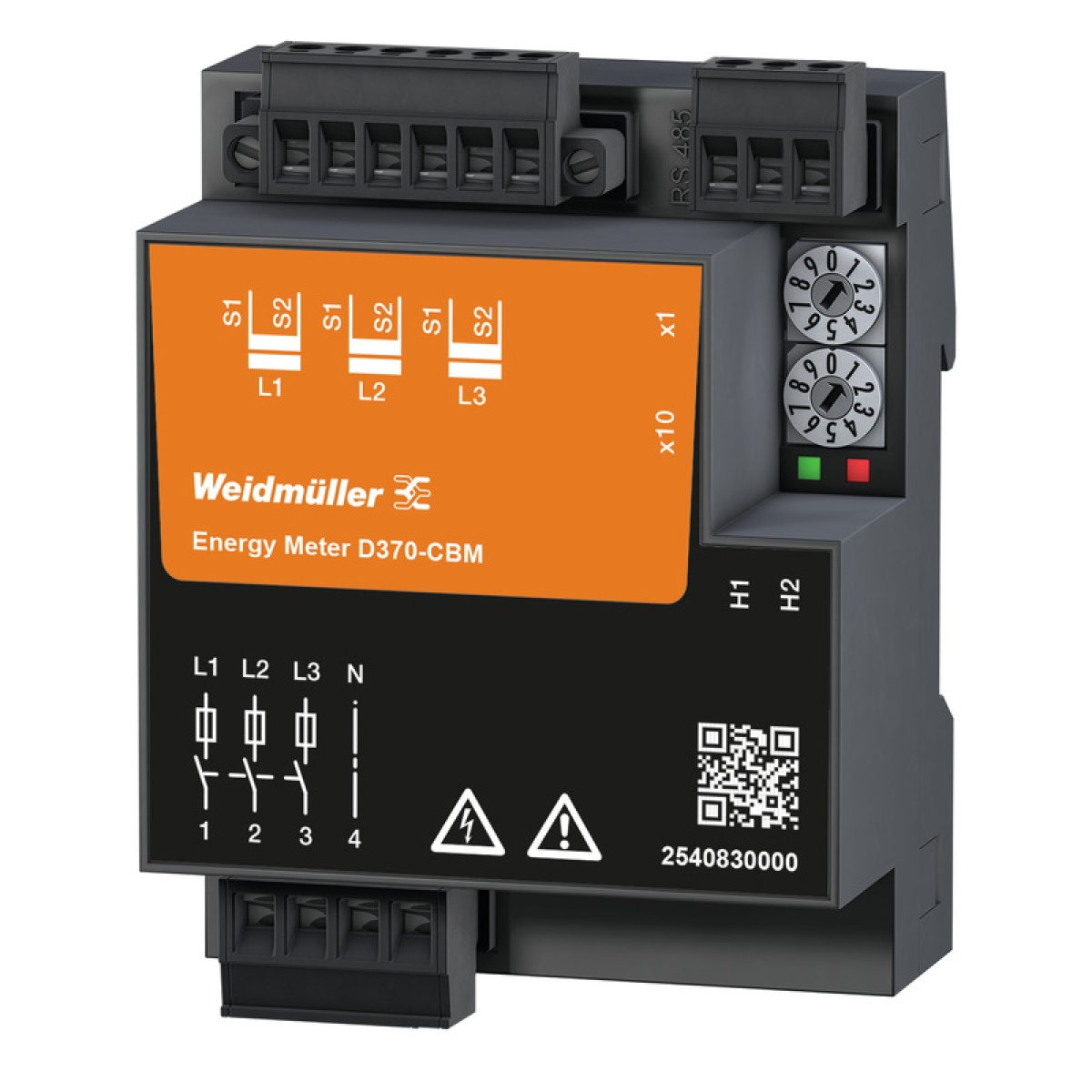

Measuring device electrical quantity, 480 V, Modbus RTU
Nortécnica Ref:
EAN:
04050118553253
Description
Technical Information
Attributes
Mounting method
DIN rail
Width
71.6
Model
Measurement transformer
Height
98
Depth
46
Measured value memory
Yes
Display
-
Max. current Imax
5000
Harmonics measurement
Yes
Power factor
Yes
Apparent power
Yes
Step angle cos phi
Yes
Number of digital inputs
0
Number of digital outputs
0
Number of analogue inputs
-
Number of analogue outputs
-
Voltage type supply voltage
AC
Supporting protocol for PROFIBUS
No
Supporting protocol for Modbus
Yes
Supporting protocol for other bus systems
No
Degree of protection IP, front side
IP20
Number of Ethernet connections
0
Ampere meter
Yes
Reactive power meter
Yes
With rotational speed meter
No
Frequency meter
Yes
Pulse counter
No
Voltmeter
Yes
Effective power measurement device
Yes
With communication interface RS-485
Yes
Connectable conductor cross section solid-core
0.2
2.5
Supporting protocol for PROFINET IO
No
Supply voltage AC 50 Hz
196
275
Supply voltage AC 60 Hz
196
275
Supply voltage DC
-
-
Suitable for RJ plug
No
Calibrated
Yes
Pulse output
None
Pole type
Four conductor
Measurement type load profile
Yes
Nominal current In
5000
Measuring range for frequency
45
65
Display resolution horizontal
-
Display resolution vertical
-
Accuracy class active energy according to IEC 62053-22
-
Accuracy class reactive energy according to IEC 62053-23
Other
Sampling frequency
5.4
Number of voltage measurement inputs
-
Number of current measurement inputs
-
Supporting protocol for IEC 61850 Ethernet
No
Supporting protocol for OPC UA PubSub
No
With audit logging audit log
No
With firmware signature
No
With logging of security events security event log
No
With Role Based Access Control RBAC
No
Web server with HTTPS transfer protocol
No
With communication interface KNX
No
Wth communication interface M-Bus
No
Remote display
No
Brands
Weidmueller
