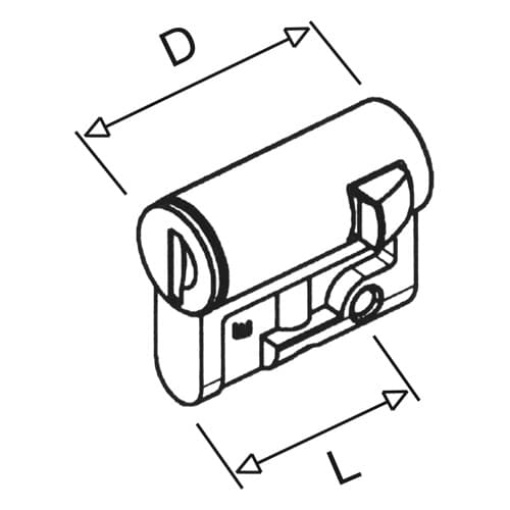

Cable distribution cabinet with smooth surface. They have a three-point lock with a swivelling lever handle for profile half cylinders. The cabinets are made of hot-pressed, glass-fibre reinforced polyester, dyed through in RAL 7035 light grey. They are corrosion-resistant and UV-resistant, making them suitable for outdoor use. The enclosures are suitable for ambient conditions from -35°C to +70°C. The open door can be easily disassembled by removing the hinge pins for optimal access to the cabinet. The door opening angle is greater than 180°. There are pressed-in core holes in the rear panel to accept M8 press-in nuts for mounting busbars, mounting frames or mounting plates. The enclosures are supplied with an open base, base plates are available as accessories. There are fixing points in the side panel for mounting horizontal busbars. The enclosures are designed for mounting on bases according to DIN 43629 with standard dimensions between the mounting points. EHP300 Cabinet Gr. 00 AP 875x455x320 SHG EH3, profiled with SHGIP44, IK10
Quadros Modulares

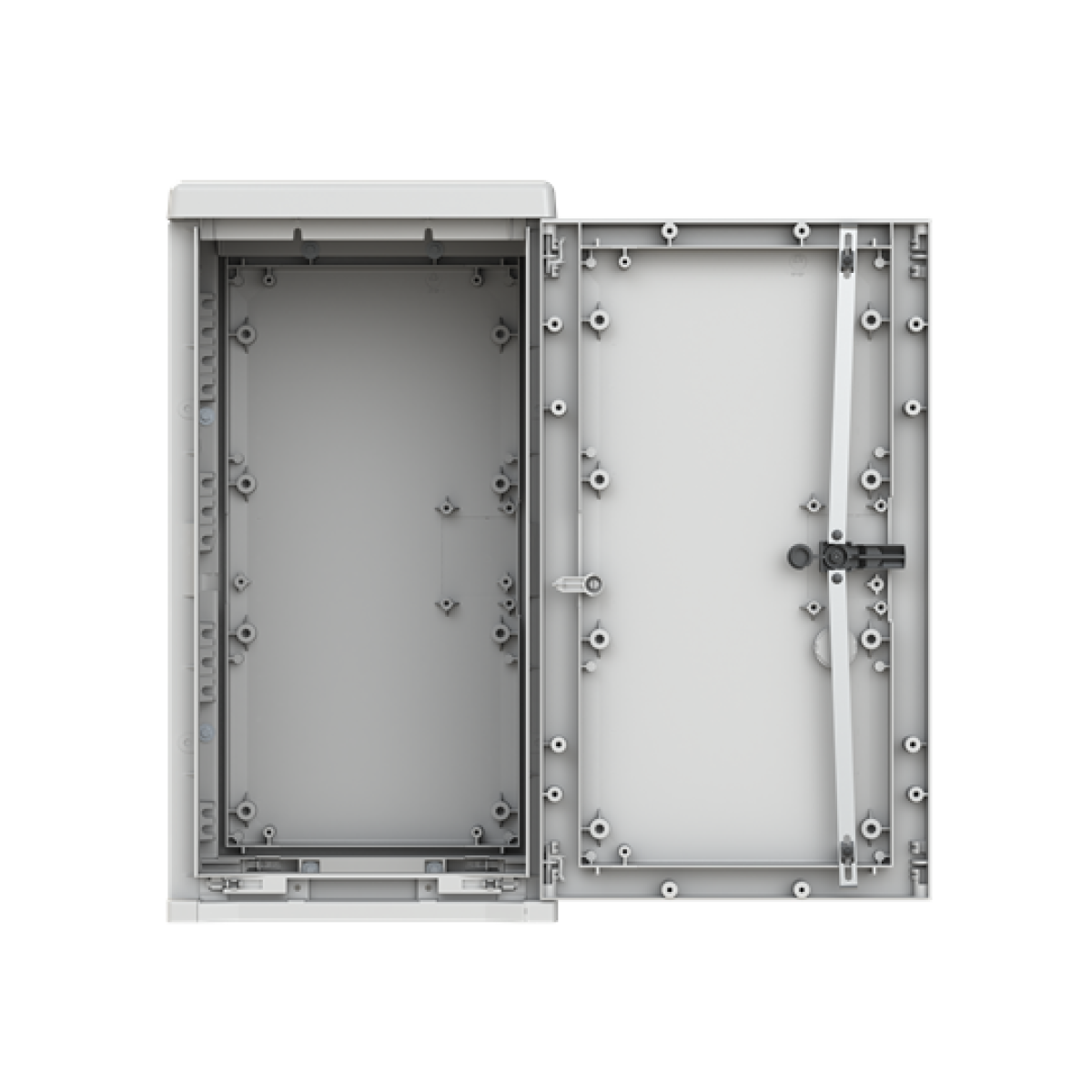

EH3 Enclosure DIN00 F 875x455x320
Ref Nortécnica:
EAN:
5411815240928
Descrição
Informações Técnicas
Atributos
Cor
Cinzento
Largura
455
Altura
875
Profundidade
875
Número RAL
7035
Com tampa de montagem
Não
Número de portas
-
Número de bloqueios
-
Adequado para aplicação em paredes
-
Pré-puncionada
-
Versão EMC
-
Com porta de vidro
-
Acoplável
-
Qualidade do material
-
Material
-
Resistência ao impacto IK
IK10
Grau de proteção IP
IP44
Número de orifícios do conector
-
EF005774
-
Adequado para montagem métrica
-
Placa de montagem regulável em profundidade
-
Com porta de ventilação
-
Acabamento da superfície
Sem tratamento
Com porta traseira
-
Construção em parede
-
Com topo
-
Com porta
-
Telhado inclinado
-
Fixação de poste
-
Tampa transparente
-
Grau de proteção NEMA
-
Dissipação térmica Delta T20K segundo IECTR 60890
-
Carga máxima admissível segundo IEC 62208
-
Carga máx. admissível das portas segundo IEC 62208
-
Carga máx. admissível da platine segundo IEC 62208
-
Mural com base de chão
-
Independente
-
Modelo de canto
-
Montagem intermédia
-
Marcas
ABB
Descrição Longa
Cable distribution cabinet with smooth surface. They have a three-point lock with a swivelling lever handle for profile half cylinders. The cabinets are made of hot-pressed, glass-fibre reinforced polyester, dyed through in RAL 7035 light grey. They are corrosion-resistant and UV-resistant, making them suitable for outdoor use. The enclosures are suitable for ambient conditions from -35°C to +70°C. The open door can be easily disassembled by removing the hinge pins for optimal access to the cabinet. The door opening angle is greater than 180°. There are pressed-in core holes in the rear panel to accept M8 press-in nuts for mounting busbars, mounting frames or mounting plates. The enclosures are supplied with an open base, base plates are available as accessories. There are fixing points in the side panel for mounting horizontal busbars. The enclosures are designed for mounting on bases according to DIN 43629 with standard dimensions between the mounting points. EHP300 Cabinet Gr. 00 AP 875x455x320 SHG EH3, profiled with SHGIP44, IK10
