TV and R double outlet - Final Without filter. Installation as a terminal outlet connected to a tap-off or splitter (without terminal resistor). Connection: screw terminal and clamp. Output connectors (C1 / C2): IEC male 9,52mm diam. / IEC female 9,52mm diam. Frequency range (I/O / C1 / C2): 5 - 862 MHz / 5 - 862 MHz / 5 - 862 MHz Basic loss (FM / DAB / VHF / UHF): 10,0±0,7 dB / 10,0 ±1,5 dB / 4,0±1,5 dB / 3,0±0,5 dB Isolation (FM / TV): >14 / >14 Return loss (FM / TV): >18 / >10 Included: fixing claws Cover plate code: 8550, 8650, N2250.8, 8450, 8250 & 5550
Antennas and Accessories

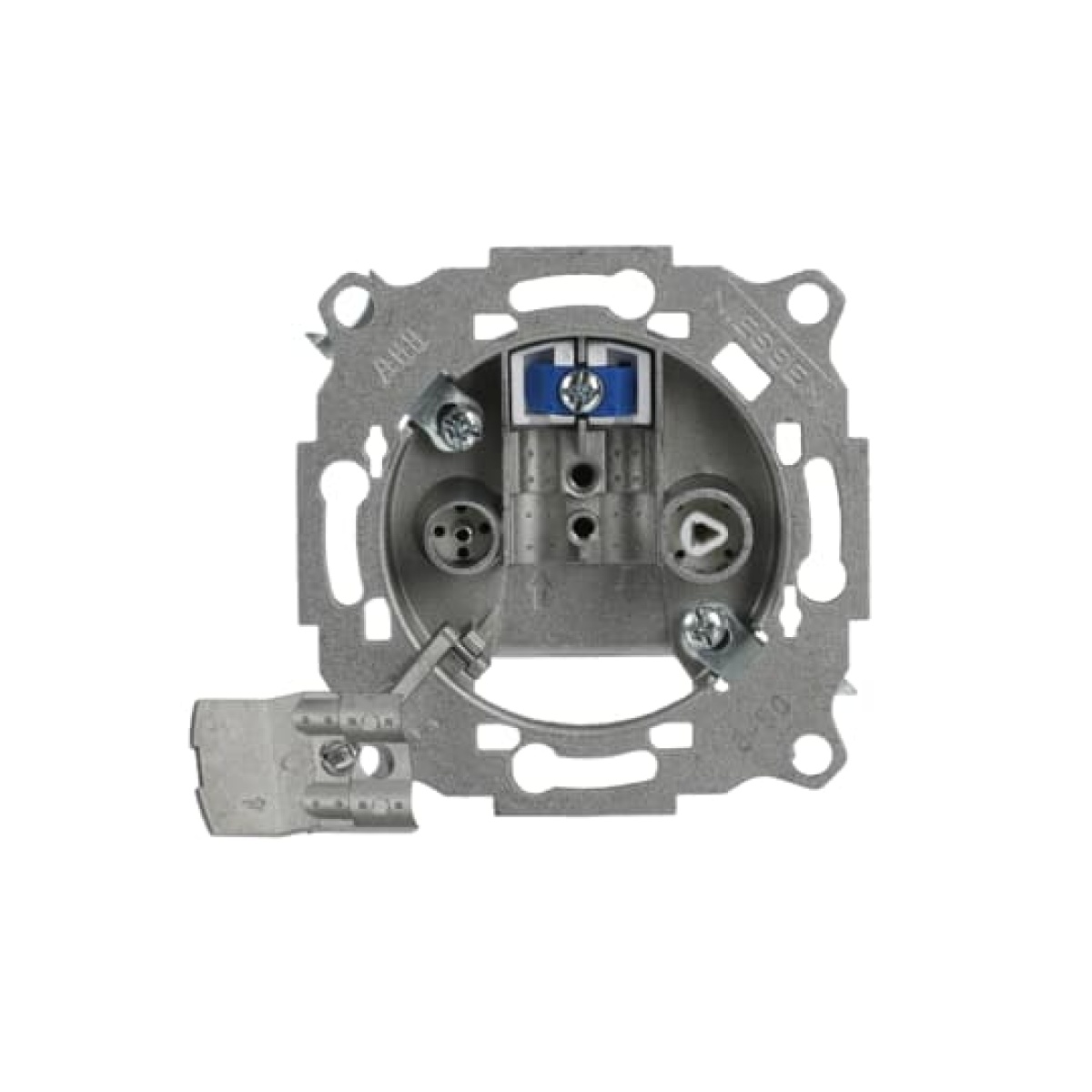

TV outlet End socket
Nortécnica Ref:
272CLA815000A1001
EAN:
8427238045962
Description
Technical Information
Attributes
Mounting method
Flush-mounted
Colour
-
Model
End socket
Halogen free
Yes
EF000055
EV000494
Surface protection
-
Número de vias de saída
2
Atenuação da passagem a 860 MHz
-
Perda de derivação a 860 MHz
10
Material quality
-
Suitable for cable modem
No
Suitable for remote power supply
No
Material
-
Type of fastening
Mounting with screw
Type of socket outlet
-
Atenuação da conexão em 2 150 MHz
-
Atenuação da passagem a 2 150 MHz
-
Número RAL semelhante
-
Impact strength
-
Degree of protection IP
-
Surface finishing
-
Largura do dispositivo
149.000
Altura do dispositivo
78.000
Profundidade do dispositivo
225.000
Número de módulos sistema de módulos
-
DAB
-
Min. profundidade da caixa de instalação embutida
-
Shielding efficiency class
-
TV frequency band
-
-
Radio frequency band
-
-
SAT frequency band
-
-
Anti-bacterial treatment
No
Brands
ABB
Descrição Longa
TV and R double outlet - Final
Without filter.
Installation as a terminal outlet connected to a tap-off or splitter (without terminal resistor).
Connection: screw terminal and clamp.
Output connectors (C1 / C2): IEC male 9,52mm diam. / IEC female 9,52mm diam.
Frequency range (I/O / C1 / C2): 5 - 862 MHz / 5 - 862 MHz / 5 - 862 MHz
Basic loss (FM / DAB / VHF / UHF): 10,0±0,7 dB / 10,0 ±1,5 dB / 4,0±1,5 dB / 3,0±0,5 dB
Isolation (FM / TV): >14 / >14
Return loss (FM / TV): >18 / >10
Included: fixing claws
Cover plate code: 8550, 8650, N2250.8, 8450, 8250 & 5550
