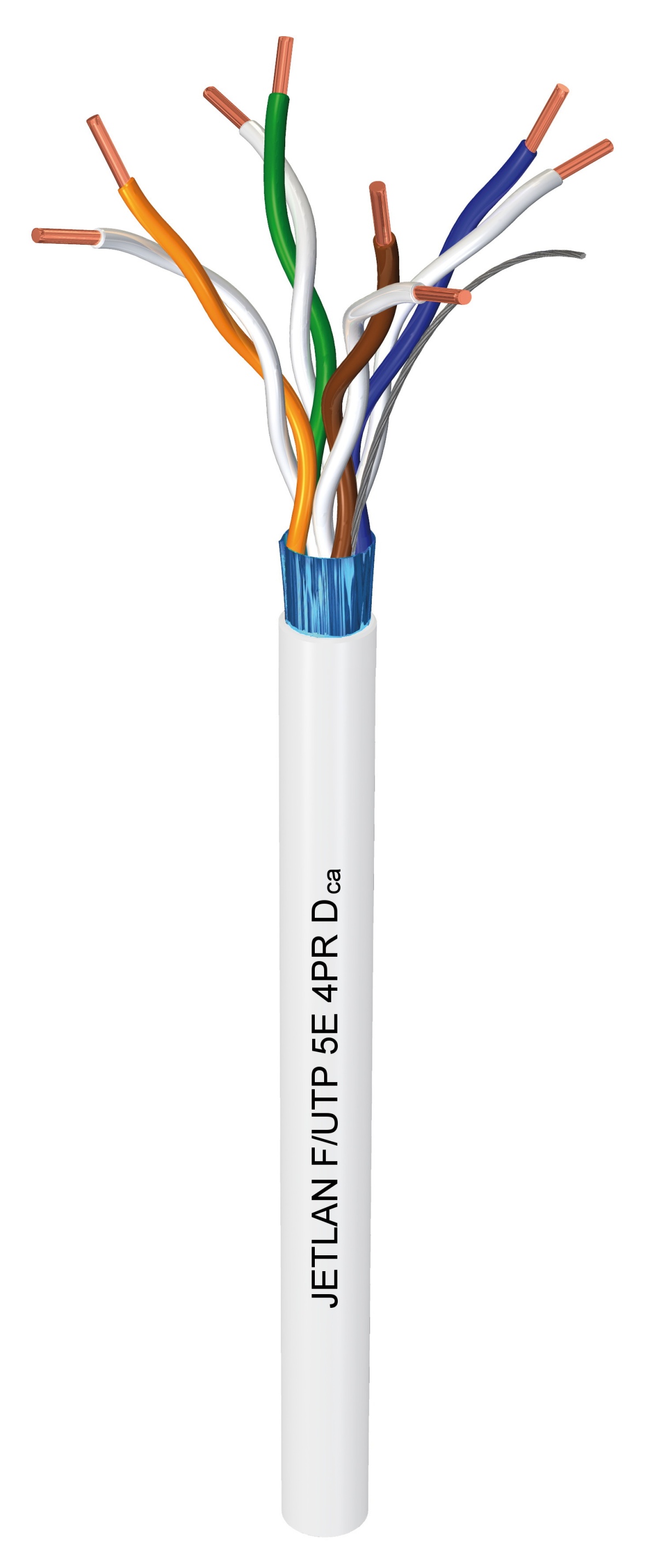

JT FUTP5E 4P 200MHz PVC Eca C305 CZ
Data and Communication Cable (Copper)
JT FUTP5E 4P 200MHz PVC Eca C305 CZ
Manufacturer Ref:
60080876
Nortécnica Ref:
EAN:
8434003153982
Description
Technical Information
Attributes
EF000024
-
Secção nominal do condutor
0,2
Material core insulation
Polyolefin
Core identification
Colour
Peso
-
Flame retardant
EV004175
Integridade do circuito
EV000494
Stranding element
Other
Colour outer sheath
Grey
Category
5E
Diâmetro do condutor
0,504
Conductor material
Copper
Screen over stranding element
None
Screen over stranding
-
Material outer sheath
Polyvinyl chloride PVC
Conductor category
Class 1 solid
Armouringreinforcement
None
Permitted cable outer temperature during assemblinghandling
-5
70
Permitted cable outer temperature after assembling without vibration
-5
70
Número de elementos de fiação
-
Protective sheath
None
Número de núcleos
8
Suitable for underground installation
-
Halogen free according to EN IEC 60754-2
No
EF003794
-
Low smoke according to EN IEC 61034-2
-
Stranding
Layers
Diâmetro externo aprox.
5,6
EF008027
-
Valor NVP
-
EF009769
No
Oil resistant according to EN IEC 60811-404
-
EF009842
-
Conductor surface
Bare
Longitudinal water blocking cable
-
Radial water blocking cable
-
Reactiontofire according to EN 135016 Class
Eca
Reactiontofire according to EN 135016 Smoke production
None
Reactiontofire according to EN 135016 Flaming dropletsparticles
None
Reactiontofire according to EN 135016 Acidity
None
AWG size
-
Raio mín. de curvatura permitido, aplicação móvel com orientação forçada
-
Raio mín. de curvatura permitido, aplicação móvelmovimento livre
-
Raio mín. de curvatura permitido, aplicação estáticainstalação permanente
22
Specification core insulation
Polyethylene PE
Specification material outer sheath
Other
Material armouring
-
Cable geometry
Round
Core identification according to HD 308 S2
-
Suitable as telephone cable
Yes
Suitable as computer data cable
Yes
Suitable as signalling cable
Yes
Certified for shipboard application
No
Segregation class according to EN 50174-2
-
Approved type of underground installation
-
Compatible with Grade2TV according to XP-C 90-483
No
Compatible with Grade3TV according to XP-C 90-483
No
