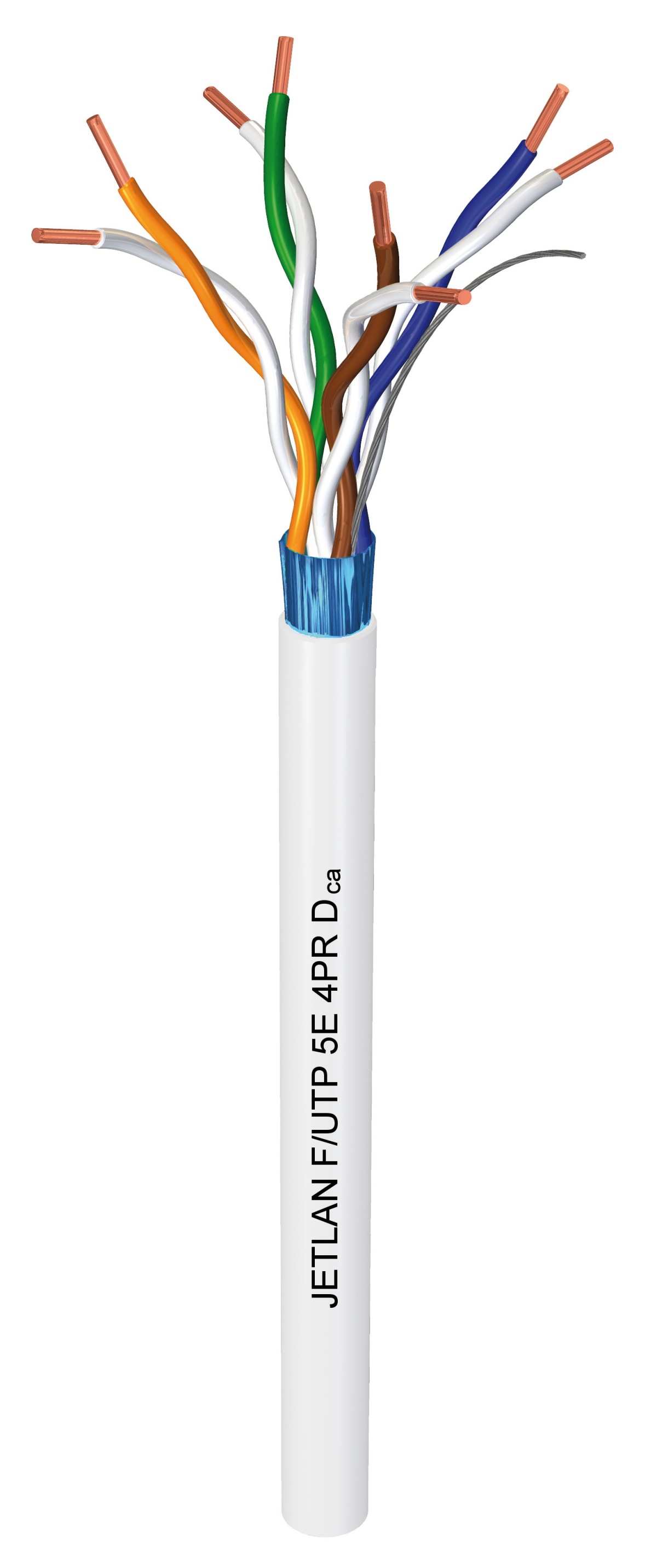

JT FUTP5E 4P PVCPE Fca B1000 PT
Data and Communication Cable (Copper)
JT FUTP5E 4P PVCPE Fca B1000 PT
Manufacturer Ref:
60080888
Nortécnica Ref:
EAN:
8434003017673
Description
Technical Information
Attributes
EF000024
-
Nominal cross section conductor
0,2
Material core insulation
Polyolefin
Core identification
Colour
Weight
-
Flame retardant
EV004175
Circuit integrity
EV000494
Stranding element
Other
Colour outer sheath
Black
Category
5E
Diameter conductor
0,504
Conductor material
Copper
Screen over stranding element
Foil
Screen over stranding
-
Material outer sheath
Polyvinyl chloride PVC
Conductor category
Class 1 solid
Armouringreinforcement
None
Permitted cable outer temperature during assemblinghandling
-5
70
Permitted cable outer temperature after assembling without vibration
-5
70
Number of stranding elements
-
Protective sheath
None
Number of cores
8
Suitable for underground installation
-
Halogen free according to EN IEC 60754-2
No
EF003794
-
Low smoke according to EN IEC 61034-2
-
Stranding
Layers
Outer diameter approximate
7
EF008027
-
NVP value
-
EF009769
No
Oil resistant according to EN IEC 60811-404
-
EF009842
-
Conductor surface
Bare
Longitudinal water blocking cable
-
Radial water blocking cable
-
Reaction-to-fire according to EN 13501-6 Class
Fca
Reaction-to-fire according to EN 13501-6 Smoke production
None
Reaction-to-fire according to EN 13501-6 Flaming dropletsparticles
None
Reaction-to-fire according to EN 13501-6 Acidity
None
AWG size
-
Min. permitted bending radius, moving application with forced guidance
-
Min. permitted bending radius, moving applicationfree movement
-
Min. permitted bending radius, stationary applicationpermanent installation
28
Specification core insulation
Polyethylene PE
Specification material outer sheath
Polyethylene PE
Material armouring
-
Cable geometry
Round
Core identification according to HD 308 S2
-
Suitable as telephone cable
Yes
Suitable as computer data cable
Yes
Suitable as signalling cable
Yes
Certified for shipboard application
No
Segregation class according to EN 50174-2
-
Approved type of underground installation
-
Compatible with Grade2TV according to XP-C 90-483
No
Compatible with Grade3TV according to XP-C 90-483
No
Brands
General Cable
